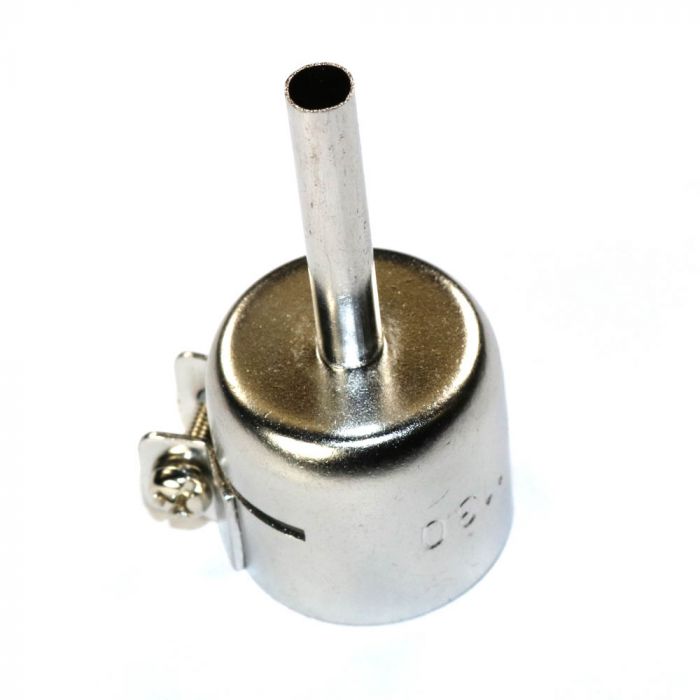

Hakko A1130 Hot Air Nozzle

Hakko A1130 Hot Air Nozzle

SKU HKA1130
by Hakko
Sold out
$0.00 - $0.00
$0.00
$0.00
$0.00 - $0.00
$0.00
The Hakko A1130 is a single-jet hot air nozzle with a 4.4 mm inner diameter aperture. It is designed for precision heating and is compatible with a wide range of Hakko rework systems. This nozzle is ideal for targeted heating in small, confined areas. Note: vacuum pick-up functions are not supported when using this nozzle.
Features & Benefits

*Provides a focused single-jet airflow with a 4.4 mm (0.173 in) nozzle opening.*Delivers precise, concentrated heating ideal for small area rework.*Compact size reduces thermal exposure to surrounding components.*Constructed for durability with consistent metal fabrication.*Vacuum pick-up functions are inoperative when using this nozzle.

Specifications

*Manufacturer: Hakko*Part number: A1130*SKU: HKA1130*Nozzle type: Single jet hot air nozzle*Inner diameter: 4.4 mm (0.173 in)*Compatibility: Hakko FR-811, FR-810B, FR-810 (with B5058 adapter), FR-803B, FR-802, FR-801, 850, 850B, 850D, 852 systems*Vacuum pickup: Not supported*Maximum operating temperature: Up to approximately 600 °C (typical for hot air nozzles)

More Information

Uses:*Fine-pitch rework and targeted soldering or desoldering tasks on small SMT components.*Precision removal or reflow of small pads or pins where broad airflow would affect adjacent parts.*Use in electronics repair, prototypes, and laboratory diagnostics.*Well suited to environments using Hakko FR or 850-series rework stations.*Ideal for localized heating in dense board layouts to limit thermal spread.

Operators Manual
