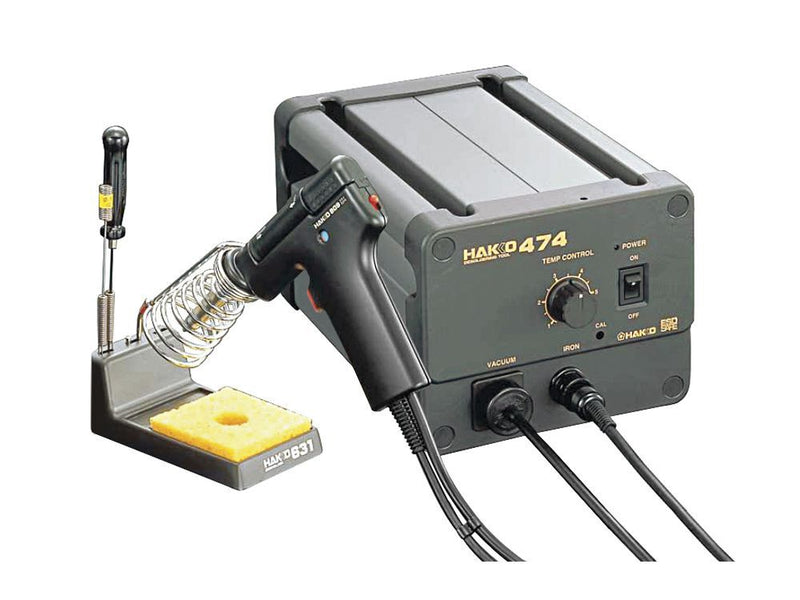

Hakko Desoldering Tool, 474 240V-24V

Hakko Desoldering Tool, 474 240V-24V

SKU HK474-10
by Hakko
Sold out
$0.00 - $0.00
$0.00
$0.00
$0.00 - $0.00
$0.00
The Hakko 474 is a high-performance vacuum desoldering tool designed for efficient removal of solder from through-hole components and mixed-technology PCBs. Featuring a built-in vacuum pump and a safe 24 V output via an insulated transformer, it offers stable temperature control and consistent suction power. Its ESD-safe design and compatibility with multiple Hakko handpieces make it suitable for both industrial and technical service applications. Although discontinued in 2016, the Hakko 474 remains a reliable option in many repair and maintenance environments. Applications: *Desoldering of through-hole components on PCBs *Repair and maintenance in electronics servicing and industrial settings *Ideal for workshop, laboratory, or educational use *Suitable for use with static-sensitive components *Compatible with Hakko 809, 815, and 816 handpieces for versatile operation
Features & Benefits

*Built-in insulated transformer with 24 V output to the handpiece.*Vacuum-pump system provides strong, stable suction without external air.*ESD-safe construction with low potential and resistance to ground.*Zero-cross temperature control circuit for accurate heat management.*Compatible with multiple Hakko desoldering handpieces.*Simple maintenance with replaceable nozzles, filters, and heaters.

Specifications

*Manufacturer: Hakko*Model Number: 474*Power Consumption: 100 W*Output Voltage to Handpiece: 24 V AC*Temperature Range: 380 °C to 480 °C*Vacuum System: Built-in double-cylinder diaphragm pump*Maximum Vacuum Pressure: 80 kPa (600 mmHg)*Suction Flow Rate: 15 L/min*Tip-to-Ground Resistance: < 2 O*Tip-to-Ground Potential: < 2 mV*Station Dimensions: Approx. 165 × 135 × 260 mm*Station Weight: Approx. 3.8 kg*Handpiece (809 Gun) Weight: Approx. 200 g (without cord)*Standard Nozzle: A-type, 1.0 mm diameter*Input Voltage: 240 V AC*Output Power: 24 V AC (via internal transformer)*Country of Origin: Japan

More Information

Applications:*Desoldering of through-hole components on PCBs*Repair and maintenance in electronics servicing and industrial settings*Ideal for workshop, laboratory, or educational use*Suitable for use with static-sensitive components*Compatible with Hakko 809, 815, and 816 handpieces for versatile operation
