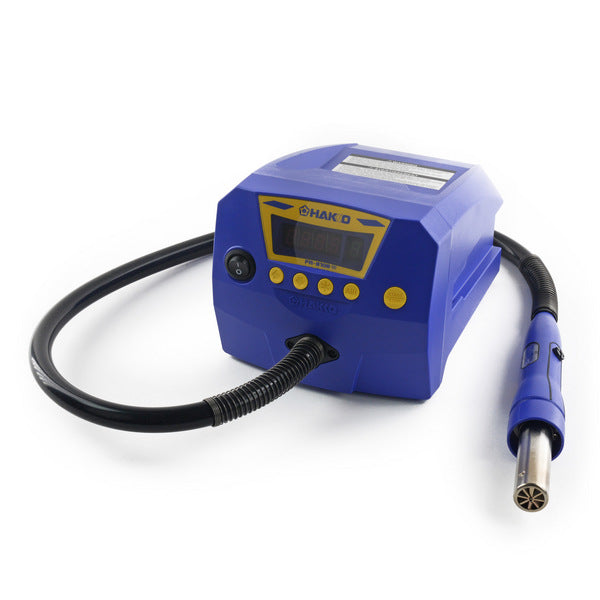

Hakko FR-810B Digital SMD Hot Air Rework Station
SKU HKFR810B
by Hakko
Sold out
Original price
$0.00
-
Original price
$0.00
Original price
$0.00
$0.00
$0.00
-
$0.00
Current price
$0.00
Hakko New Turbine Powered Hot Air Rework station. Comes with Hakko nozzle HKN5-02, 4mm, Single
Turbine powered digital SMD hot air rework station for a various kinds of boards
Maximum Temperature 600?, maximum airflow 115L/min
Simple nozzle removal and easy maintenance
Conventional nozzles are usable via conversion adapter.
Turbine powered digital SMD hot air rework station
for a various kinds of boards
High volume airflow and high output for a various kinds of rework
Fine setting can be arranged for various types of boards due to wide range of temperature and airflow.
The FR-810 makes it possible to supply hot air with high volume airflow and high output when repairing heavy duty boards. And just the right airflow and high output can be set for high density boards with fine components.
Together with digital control, this creates the ideal worksite and the workpiece, and improves rework efficiently.
Efficiency improvement
The FR-810’s high volume airflow and high output make it possible to perform the same work in only one-third of the time required when using a conventional model.
This reduces the thermal impact on boards and components.
*Examination of time taken for connector sections soldered onto a ceramic board to be heated to 200 °C with maximum temperature and airflow settings selected.
Single nozzles with an approximately 4mm diameter were used.
Use conventional HAKKO nozzles by attaching included conversion adapter
To use HAKKO FR-810 with a conventional HAKKO nozzle, attach the included conversion adapter.
Purchasing a conversion adapter for each different type of nozzle will help make work more convenient.
*Conventional nozzles refer to the optional nozzles for use with HAKKO FR-801/802/803B.
full digital control of temperature, airflow, and time
Timer function
A new timer function allows for repeat ably consistent work times. This can help to prevent parts from overheating and can improve the overall quality of your work.
Pre-set mode
Pre-set mode allows you to change the settings easily to suit a variety of boards and workpieces. (You can program temperature, time and airflow settings for up to five pre-sets)
Simply switch to the desired setting for variety of jobs.
Chain Pre-sets function
The Chain Pre-sets function allows you to create a simple temperature profile by combining settings registered in pre-set mode. (Up to five steps can be created).
It also supports sophisticated removal work, and significantly improves efficiency.
To ensure safety and conserve power, when the handpiece is placed in the handpiece holder, the auto sleep function is activated and it starts cooling automatically.
If the handpiece has not been removed from the handpiece holder (Ex. Using it in a rework fixture) and after it has been idle for 30 minutes, auto shutoff function is activated. It is automatically powered off.
Access to settings can be restricted via the password function for easy management.
Create a low-cost repair system with a rework fixture
Using the optional fixture adapter allows you to also attach the handpiece to the rework fixture (C1392B).
