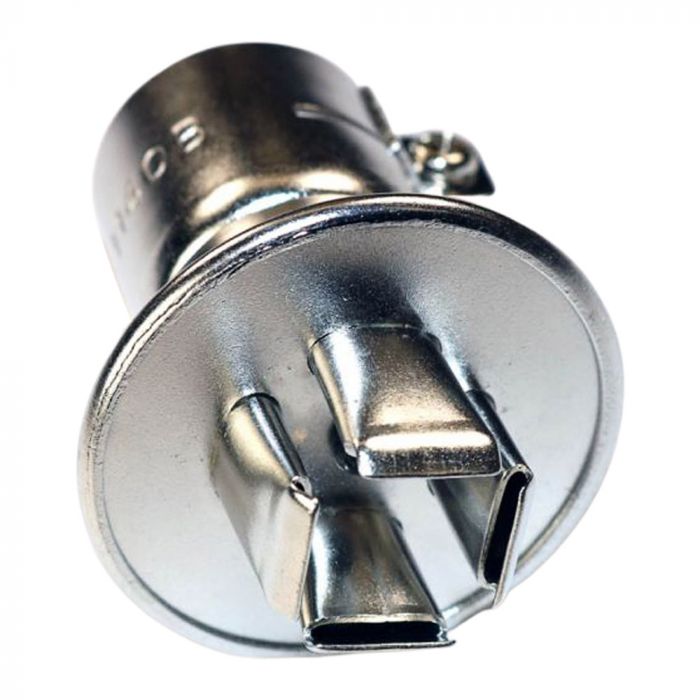

Hakko Hot Air Nozzle For 850/852 PLCC 11.5 x 11.5

Hakko Hot Air Nozzle For 850/852 PLCC 11.5 x 11.5

SKU HKA1140B
by Hakko
Sold out
$0.00 - $0.00
$0.00
$0.00
$0.00 - $0.00
$0.00
The Hakko A1140B is a hot air nozzle designed specifically for PLCC-28 packages with an aperture of approximately 11.5 × 11.5 mm (0.45 × 0.45 inches). It is compatible with Hakko 850/852 and FR-80x series rework systems and supports vacuum pickup functionality when used on systems equipped with that capability. This nozzle is ideal for precise reflow or removal of small-to-medium PLCC components in SMT rework processes.
Features & Benefits

*Tailored for PLCC-28 packages measuring approximately 11.5 × 11.5 mm.*Vacuum pickup function is operative when used with compatible Hakko rework systems.*Provides uniform airflow around the entire PLCC component perimeter.*Facilitates clean and controlled reflow or removal of PLCC-28 devices.*Constructed with durable materials for consistent thermal performance and airflow over extended use.

Specifications

*Manufacturer: Hakko*Part number: A1140B*SKU: HKA1140B*Nozzle type: PLCC-28 hot air nozzle*Aperture size: approximately 11.5 × 11.5 mm (0.45 × 0.45 inches), 28-pin configuration*Compatible systems: Hakko 850, 850B, 850D, 852; FR-801, FR-802, FR-803B, FR-803; FR-810B and FR-811 using appropriate adapter*Vacuum pickup support: Yes, when used with supported Hakko systems

More Information

Uses:*Reworking PLCC-28 IC packages on printed circuit boards.*Soldering and desoldering of PLCC-28 devices in electronics repair, prototype development, or diagnostics.*Precision reflow in dense SMT layouts, reducing spread of heat to adjacent components.*Ideal for use in R&D labs, service centers, and production environments operating Hakko 850/852 or FR-80x series tools.*Suitable for controlled thermal operations on small PLCC packages to ensure accurate component handling and minimal risk.
