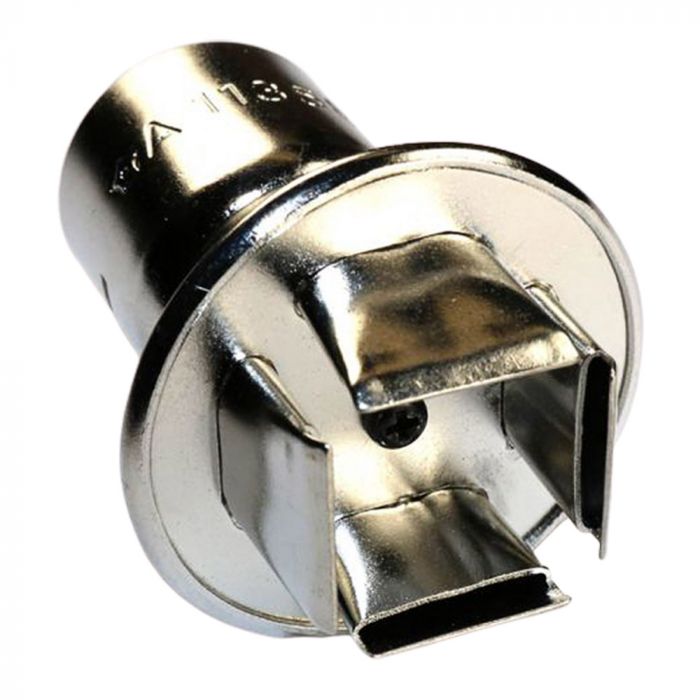

Hakko Hot Air Nozzle For 850/852 PLCC 17.5 x 17.5

Hakko Hot Air Nozzle For 850/852 PLCC 17.5 x 17.5

SKU HKA1135B
by Hakko
Sold out
$0.00 - $0.00
$0.00
$0.00
$0.00 - $0.00
$0.00
The Hakko A1135B is a hot air nozzle of the PLCC-44 type, featuring an approximately 18.5 Ɨ 18.5 mm aperture. It is tailored for reworking PLCC-44 package components and is compatible with the broader Hakko 850/852 and FR-80x series rework systems, offering targeted airflow and thermal control suited for medium-sized PLCC devices.
Features & Benefits

*Designed specifically for PLCC-44 packages measuring approximately 18.5 Ɨ 18.5 mm.*Provides uniform airflow surrounding the perimeter of the PLCC component.*Enables clean and efficient rework of medium PLCC devices with minimal impact to adjacent components.*Compatible with vacuum pickup functions when used with supported Hakko systems.*Constructed of durable metal to maintain consistent airflow over extended use.

Specifications

*Manufacturer: Hakko*Part number: A1135B*SKU: HKA1135B*Nozzle type: Hot air nozzle for PLCC-44 components*Aperture size (Side A Ɨ Side B): approximately 18.5 Ɨ 18.5 mm (0.73 Ɨ 0.73 inches)*Compatible systems: Hakko FR-811, FR-810B, FR-810 (with adapter B5058), FR-803B, FR-803, FR-802, FR-801, 850, 850B, 850D, 852 series*Vacuum pickup: Supported when nozzle is used on compatible Hakko stations

More Information

Uses:*Rework, soldering, and desoldering of PLCC-44 integrated circuits on circuit boards.*Removal or installation of PLCC packages during repair, prototyping, or diagnostics.*Localized thermal operations on medium-sized package components to protect surrounding circuitry.*Use in electronics repair labs, production lines, and R&D environments using Hakko FR-80x or 850-series rework tools.*Ideal for controlled reflow of PLCC-44 parts in dense SMT assemblies.
