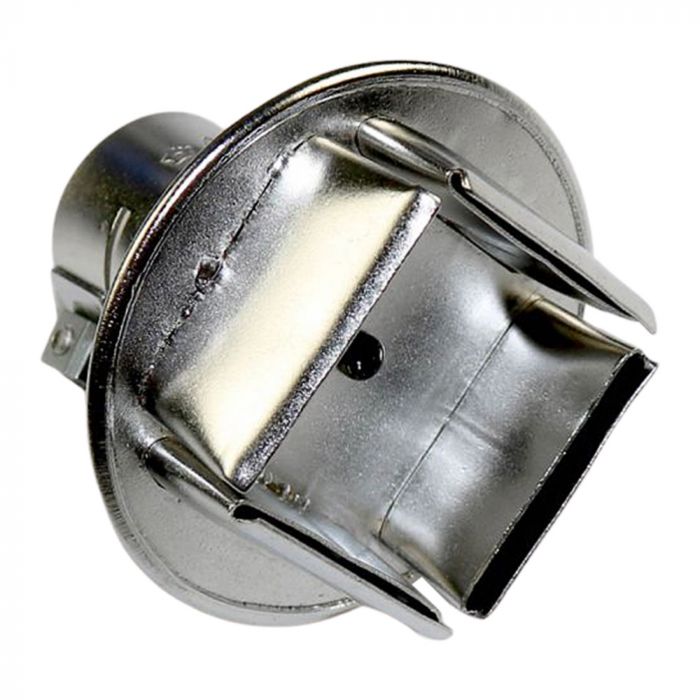

Hakko Hot Air Nozzle For 850/852 PLCC 30 x 30

Hakko Hot Air Nozzle For 850/852 PLCC 30 x 30

SKU HKA1138B
by Hakko
Sold out
$0.00 - $0.00
$0.00
$0.00
$0.00 - $0.00
$0.00
The Hakko A1138B is a hot air nozzle engineered for PLCC-84 (84-pin) IC packages approximately 30 × 30 mm in size. Designed for use with Hakko’s 850/852 and FR-80x series rework systems, this nozzle supports vacuum pickup functionality for precise, efficient removal or placement of medium-to-large PLCC components.
Features & Benefits

*Designed specifically for PLCC-84 packages measuring approximately 30 × 30 mm.*Vacuum pickup function is operative when used with supported Hakko systems.*Provides uniform airflow completely around the component perimeter.*Enables clean, controlled reflow or removal of medium-sized PLCC devices.*Constructed from durable materials to maintain consistent airflow and thermal stability over extended use.

Specifications

*Manufacturer: Hakko*Part number: A1138B*SKU: HKA1138B*Nozzle type: PLCC-84 hot air nozzle*Aperture size: approximately 30 × 30 mm (1.18 × 1.18 inches)*Compatible systems: Hakko FR-801, FR-802, FR-803B, FR-803, FR-810B, FR-811 (with adapter), 850, 850B, 850D, 852 series*Vacuum pickup support: Yes, when used with compatible Hakko stations

More Information

Uses:*Reworking PLCC-84 integrated circuit packages on printed circuit boards.*Soldering and desoldering of PLCC-84 devices during electronics repair, diagnostics, or prototype development.*Precision reflow in densely populated SMT layouts while minimizing thermal exposure to adjacent components.*Ideal for use in R&D labs, service centers, and production environments operating Hakko 850/852 or FR-80x series rework stations.*Suitable for controlled thermal operations on larger PLCC packages to ensure safe and accurate component handling.

Operators Manual
