Hakko Solder Tip T7-1401

Hakko Solder Tip T7-1401

SKU HKT7-1401
by Hakko
Sold out
$0.00 - $0.00
$0.00
$0.00
$0.00 - $0.00
$0.00

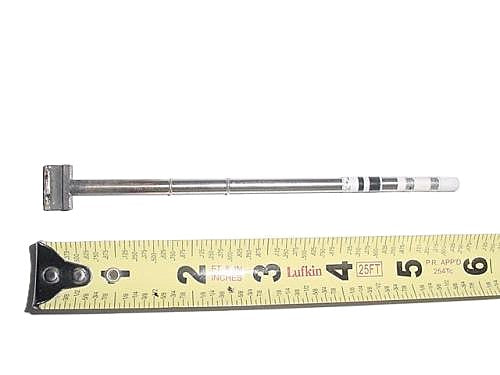

The Hakko T7-1401 spatula tip is a blade-style soldering tip originally used for the FM / FP series soldering and rework systems. It features a flat, broad contact surface that provides even heat transfer across larger areas, making it suitable for heating multiple leads, wide pads, or preheating board zones. Over time, the T7-1401 was replaced by the T15-1402 composite tip, which offers improved durability, thermal recovery, and compatibility with lead-free soldering.
Features & Benefits

*Blade / spatula geometry for distributing heat evenly.*Strong thermal recovery to maintain temperature during heavy use.*Durable construction with protective plating to resist wear.*Replacement equivalent available in the T15 series.*Compatible with FM and FP series soldering systems.*Wide surface area for soldering or reflowing multiple pins or pads at once.

Specifications

*Manufacturer: Hakko*Part Number: T7-1401*SK: HKT7-1401*Replacement / Equivalent: T15-1402*Tip Shape: Spatula / Blade*Tip Width: 15.7 mm*Tip Thickness: 2 mm*Blade Projection: 7.2 m*Maximum Operating Temperature: approx. 840 Ā°F (449 Ā°C)*Compatible Systems: FM / FP series

More Information

Uses:*Soldering and reflowing large pads or copper areas.*Heating multiple leads of ICs or connectors at once.*Preheating PCB sections to reduce thermal stress.*Rework operations requiring wide and even heat coverage.*Electronics assembly, prototyping, and repair tasks where speed and uniform heating are important.
