Hakko Temp Tester With Cal. Cert

Hakko Temp Tester With Cal. Cert

SKU HKFG100B-56
by Hakko
Sold out
$0.00 - $0.00
$0.00
$0.00
$0.00 - $0.00
$0.00

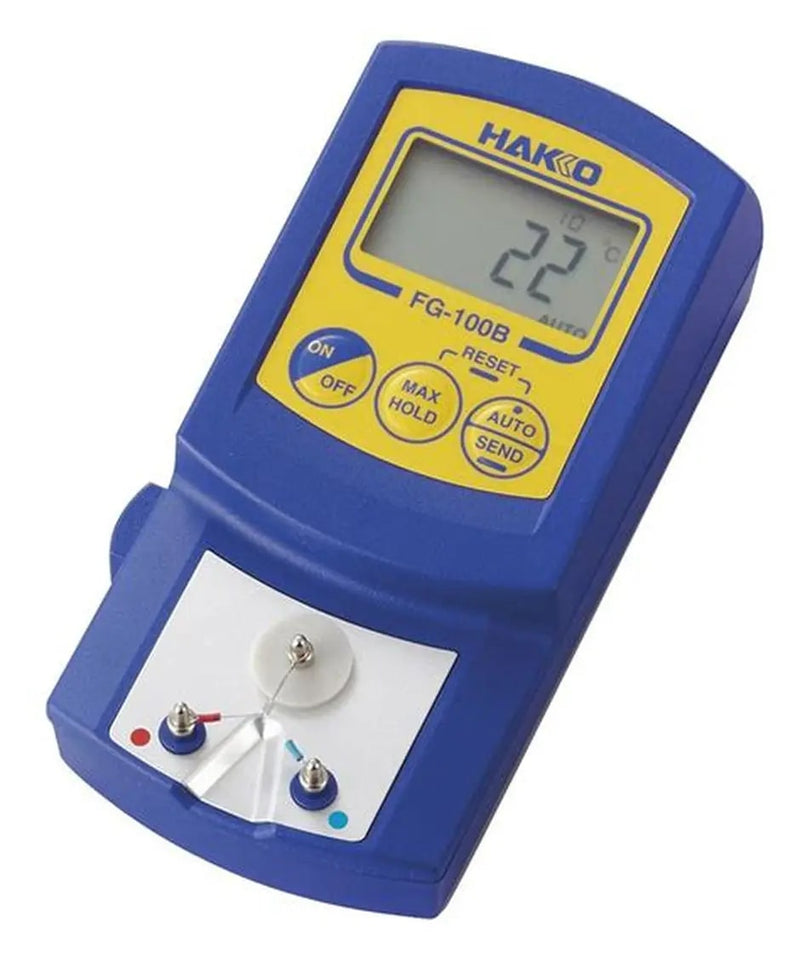

The Hakko FG100-04 is a precision soldering tip temperature tester designed to accurately measure tip temperatures of soldering irons, ensuring compliance with quality control requirements. Supplied with a calibration certificate, it is ideal for production lines, calibration labs, and service centers that require traceable accuracy. The FG100-04 features a thermocouple sensor plate, fast response time, and an easy-to-read LCD display, making it a reliable tool for maintaining optimal soldering performance and preventing component damage due to incorrect tip temperatures.
Features & Benefits

Measures soldering iron tip temperature quickly and accurately.Supplied with a calibration certificate for traceability and compliance.Large, easy-to-read LCD display for temperature readings.Uses replaceable thermocouple sensor plates for extended service life.Compact, lightweight, and battery-powered for portable use.Designed for use with lead-free and leaded soldering processes.Automatic power-off to conserve battery life.

Specifications

*Manufacturer: Hakko*Part number: FG100-04*SKU: HKFG100-04*Temperature range: 0-700°C (32-1292°F)*Accuracy: ±3°C (±5°F) within 300-600°C range*Display resolution: 1°C / 1°F*Sensor type: K-type thermocouple plate (replaceable)*Power source: 9V battery (approx. 3000 measurements per battery)*Dimensions: 160 mm (L) × 80 mm (W) × 40 mm (H)*Weight: Approx. 200 g (without battery)
