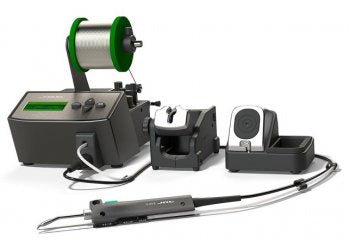

JBC Auto Feed Solder Wire Soldering Station

AL station works with the comfortable AL250 Auto-Feed Iron and C250 cartridges.It is the ideal solution for soldering processes requiring a free hand.With a single press of a button, the tool automatically feeds the precise amount of solder programmed in the station. This feature makes the AL the perfect tool when solder amount consistency is required across repetitive solder joints.It provides the best soldering quality thanks to JBC Most Efficient Soldering System and additionally Sleep & Hibernation modes help to extend life of tips.Wire dispensing speed and length are easy programmable.Available guide sets make this tool compatible with 0.4 to 1.8 mm solder wire.

SELECTABLE PARAMETERSSelectable Temperature:90 to 450 ºC / 190 to 840 ºFSolder wire length:1 to 60 mm / 0.04 to 2.36 inSolder wire speed:0.5 to 30 mm/s / 0.02 to 1.2 in/sOperating modes:Continuous / DiscontinuousSOLDER COMPATIBILITYWire diameter:0.4 to 1.8 mm / 0.02 to 0.07 inSPECIAL FEATURESSleep and Hibernation mode:These modes lower soldering tip temperature when the tool rests in the stand in order to avoid oxidation and extending tip life.Max/Min temperature and solder wire length/speed:Limits the ranges of temperature, solder wire feeding length and speed in which the operator is allowed to work.PIN protection:Keep station parameters protected against unauthorized access.ESD/EOSESD safeTip to ground resistance:<2 ohmsTip to ground voltage:<2 mV RMSPOWER SUPPLYPeak power:130 W - 23.5 VAmbient operating temp:10 to 40 ºC / 50 to 104 ºFDIMENSIONS AND WEIGHTControl Unit:195 x 200 x 240 mm / 5.81 kg7.7 x 7.9 x 9.4 in / 12.81 lbPackage:368 x 368 x 195 mm / 6.72 kg14.5 x 14.5 x 7.7 in / 14.82#Product Compostion -1 AL auto-feed- 1 AL250-B Auto-Feed Iron- 1 AL-SE Stand for AL250 Auto Feed Iron- 1 C250403 Conical Bent Ø 1 for AL250 & AP250- 1 CL8499 Manual Tip Cleaner- 1 0002401 Guide tube AL Ø 0.9 - 1 mm
