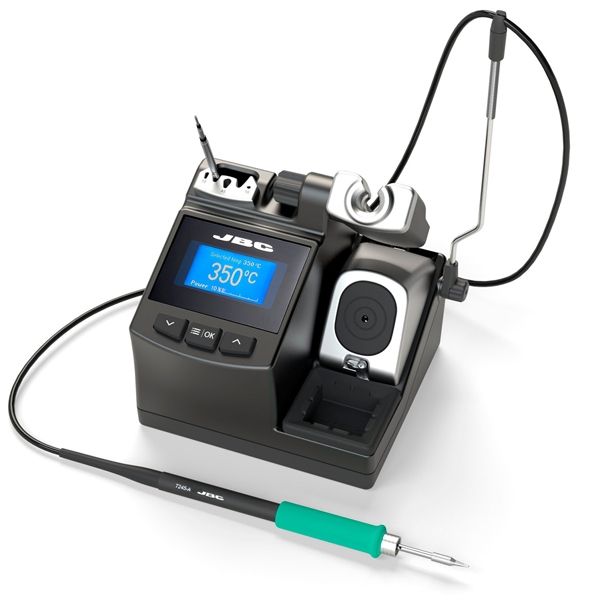

JBC CD-2BQE Soldering Station c/w T245 Handpiece

SKU JBCCD-2BQE
by JBC
Sold out
Original price $0.00 - Original price $0.00
Original price $0.00
$0.00
$0.00 - $0.00
Current price $0.00
Provides the best soldering quality thanks to JBC Exclusive Heating System and additionally, Sleep & Hibernation modes help to extend life of tips # NOTE: CARTRIDGES NOT INCLUDED
Features & Benefits

Sleep and Hibernation mode: These modes lower soldering tip temperature when the tool rests in the stand in order to avoid oxidation and extending tip life.Max. and min. temperature: Limit the temperature range in which the operator is allowed to work.Temperatue levels: Instant selection of up to 3 editable temperature settings for solder joints with different heat requirement.PIN protection: Keep station parameters protected against unauthorized access.

Specifications

- Selectable Temperature: 90 to 450 Degrees CelsiusCONNECTIVITY- USB-B: Software PC / Firmware updateEquipotential bondingESD/EOSESD Safe- Tip to ground resistance: <2 ohms- Tip to ground voltage: <2 mV RMSPOWER SUPPLY- Peak power: 130 W - 23,5 V- Ambient operating temp.: 10 to 40 Degrees CelsiusDIMENSIONS AND WEIGHT- Control Unit: 150 x 175 x 145 mm / 2,67 kg- Package: 234 x 234 x 258 mm / 3.15 kg#Content1 x Control Unit1 x T245-A General Purpose Handle (cartridges / tips not included)NOTE: CARTRIDGES NOT INCLUDED
