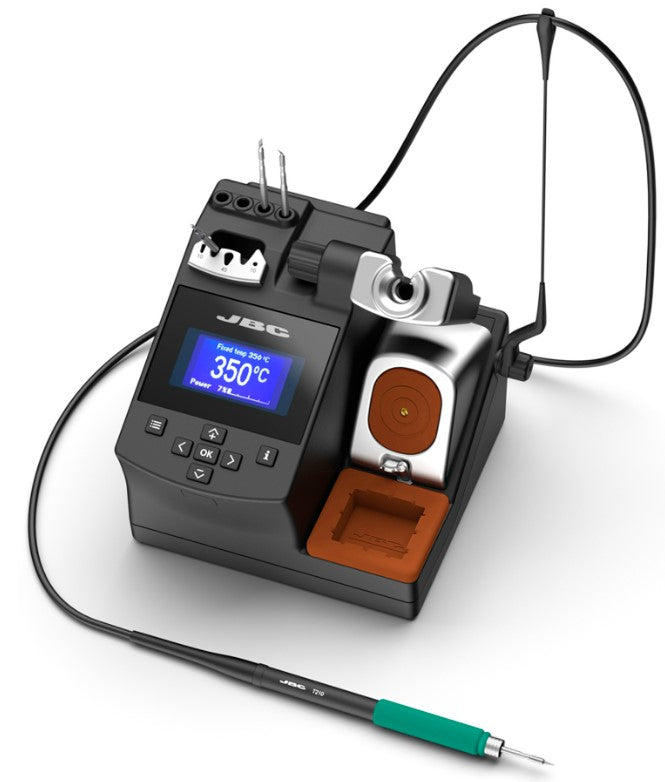

JBC CD-2SQF Compact Precision Soldering Station
jbc cds soldering station.jpg
jbc cds soldering station.jpg

JBC CD-2SQF Compact Precision Soldering Station

SKU JBCCD-2SQF
by JBC
Sold out
$0.00 - $0.00
$0.00
$0.00
$0.00 - $0.00
$0.00
JBC CD-2SQF Compact Precision Soldering Station Newly Upgraded! More intuitive and well-connected This station is ideal when working on populated PCBs or under a magnifying glass. It uses T210 Precision Handle, the perfect handpiece for accuracy soldering jobs with medium power requirements. This station includes: Fast and easy configuration of the station thanks to the 7-key keypad. Cartridge Holder to store up to four cartridges, as well as Cartridge Extractor and Cable Collector. Connectivity to JBC Fume Extractor (connector RJ12). ****Tips are sold separately**** It provides the best soldering quality thanks to JBC Most Efficient Soldering System and, additionally, the Sleep & Hibernation Modes help to extend the life of tips. Selectable Temperature: 90 to 450 Degrees Celcius CONNECTIVITY USB-B: Software PC / Firmware update Equipotential bonding: Optional connection to EPA RJ12 Connector Earthing Fuse: F 1.25A ESD/EOS ESD safe Tip to ground vol./ resist.: Meets and exceeds ANSI/ESD S20.20-2014 IPC J-STD-001F POWER SUPPLY Peak power: 40 W - 23.5 V Ambient operating temp.: 10 to 50 ºC / 50 to 120 ºF DIMENSIONS AND WEIGHT Compact Stations: 170 x 176 x 145 mm / 2.70 kg. Package: 234 x 234 x 258 mm / 3.27 kg.
Features & Benefits

T210 Precision Handle for accurate soldering of small and medium components.Fast configuration via 7-key keypad simplifies setup.Cartridge Holder stores up to 4 cartridges, with integrated extractor and cable management.RJ12 connector allows connection to JBC fume extractors.Sleep & Hibernation modes extend tip lifespan and save energy.USB-B connectivity for firmware updates and PC software integration.ESD Safe, complying with ANSI/ESD S20.20-2014 and IPC J-STD-001F standards.Compact design for limited workspace environments.

Specifications

Manufacturer: JBCModel: CD-2SQFControl Unit: CD with Tip Cleaning SystemTools Included: T210 Precision HandleCartridges: Sold separatelyTemperature Range: 90–450 ºC / 190–840 ºFPeak Power: 40 W / 23.5 VVoltage (AC): 230 VUSB-B: Software PC / Firmware updateRJ12 Connector: For fume extractorEarthing Fuse: F 1.25ATip-to-Ground Resistance/Voltage: Meets ANSI/ESD S20.20-2014, IPC J-STD-001FESD Safe: YesAmbient Operating Temperature: 10–50 ºC / 50–120 ºFCompact Station Dimensions: 170 × 176 × 145 mmCompact Station Weight: 2.70 kgPackage Dimensions: 234 × 234 × 258 mmPackage Weight: 3.27 kg
