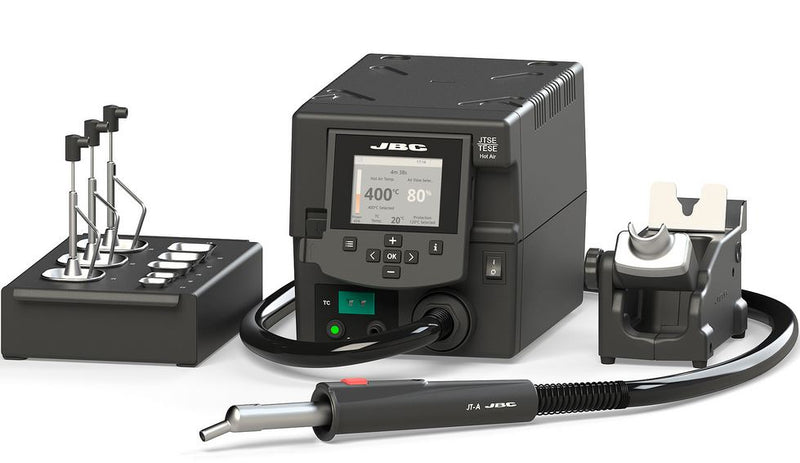

JBC Digital High Power Hot Air Station

JBC Digital High Power Hot Air Station

SKU JBCJTSE
by JBC
Sold out
$0.00 - $0.00
$0.00
$0.00
$0.00 - $0.00
$0.00
JCB High Power Hot-Air Station with Accessorie Nozzles and Extractors The JTSE hot air station is perfect for rework and repair tasks on a wide range of circuit boards. This highly flexible soldering station has a number of different modes allowing you to adapt to the rework tasks being performed. Temperature and air-flow rate can be adjusted and stored for future automated recall. Technicians can read the temperature at a specific point on the PCB thanks to the control thermocouple. This helps to protect components and allows for greater precision. The auto-stop function automatically cuts-off the heat when the tool is placed into its stand. #Accessories: PH218 Thermocouple Type K, T2050 Tripod 39 mm, T2250 Tripod 85 mm, JN2020 Nozzle for JT heater, JN2015 Nozzle for JT heater, JN2012 Nozzle for JT heater, E2052 Extractor 20 x 20 mm, E2064 Extractor 20 x 26 mm, E2184 Extractor 24 x 24 mm, P2220 Protector 10 x 10 mm, P2235 Protector 12 x 17 mm, P4000 Protector 12,4 x 12,5 mm, P2230 Protector 15 x 15 mm, P4010 Protector 17 x 17 mm, 0008752 Extractor Desk
Features & Benefits

JCB High Power Hot-Air Station with Accessorie Nozzles and ExtractorsThe JTSE hot air station is perfect for rework and repair tasks on a wide range of circuit boards.This highly flexible soldering station has a number of different modes allowing you to adapt to the rework tasks being performed. Temperature and air-flow rate can be adjusted and stored for future automated recall.Technicians can read the temperature at a specific point on the PCB thanks to the control thermocouple. This helps to protect components and allows for greater precision.

Specifications

Selectable Temperature 150 to 450 ºC (300-840 ºF) Air flow 5 to 50 SLPM Temperature profiles: Design specific thermal profiles to avoid thermal shock during soldering processes. Up to 25 fully configurable soldering profiles can be stored. Operating modes Heating / Profiles / Cooling Vacuum 30% / 228 mmHg / 9 inHgCONNECTIVITY Type K thermocouple: Can be used both for Control and Protection purposes. USB-B (rear)Software PC USB-A (front)Firmware update, Graphics / Profiles management RobotRS-232 remote control Pedal Optional tool control Equipotential bonding Optional connection to EPA ESD/EOS ESD safePOWER SUPPLY Peak power 700 W Ambient operating temp. 10 to 50 ºC / 50 to 120 ºFDIMENSIONS AND WEIGHT Premium Stations 230 x 148 x 160 mm / 4.93 kg. 9.06 x 5.83 x 6.30 in / 10.86 lb. Package 474 x 368 x 195 mm / 6.01 kg. 18.66 x 14.49 x 7.68 in / 13.25 lb.#Product Includes:Control Unit: Hot AirTools: JT-T2A 230V - Heater hose set Stands: JT-SD#Accessories: PH218 Thermocouple Type K, T2050 Tripod 39 mm, T2250 Tripod 85 mm, JN2020 Nozzle for JT heater, JN2015 Nozzle for JT heater, JN2012 Nozzle for JT heater, E2052 Extractor 20 x 20 mm, E2064 Extractor 20 x 26 mm, E2184 Extractor 24 x 24 mm, P2220 Protector 10 x 10 mm, P2235 Protector 12 x 17 mm, P4000 Protector 12,4 x 12,5 mm, P2230 Protector 15 x 15 mm, P4010 Protector 17 x 17 mm, 0008752 Extractor Desk
