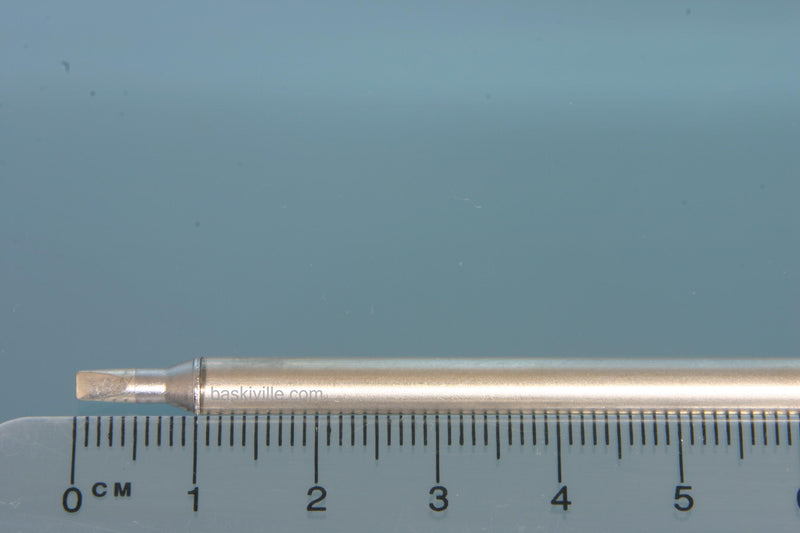

Metcal Solder Tip - 30 Deg Chisel, 10" (2.5mm)

Metcal Solder Tip - 30 Deg Chisel, 10" (2.5mm)

SKU METSTTC-036
by Metcal
Sold out
$0.00 - $0.00
$0.00
$0.00
$0.00 - $0.00
$0.00
The Oki/Metcal STTC-036 soldering tip cartridge is for use with the MX-500/-5000/-5200 Systems and MX-RM3E and MX-H1-AV Hand-pieces only. * Metcal STTC-036 Features:30 Deg chisel tip cartridge * 10'' (2.5mm) tip diameter * 600°F Series * Power tips are designed to deliver heat more efficiently for common hand soldering applications * RoHS Compliant Metcal STTC tips are available in 3 geometry styles: Chisel, Bevel and Conical STTC Temperature series and codes below: 5 = 500 Series for temperature sensitive applications. 0 = 600 Series for temperature sensitive applications. 1 = 700 Series for most standard applications. 8 = 800 Series for Ceramic and high thermal demand applications.
Features & Benefits

30° Chisel Tip. Ideal for larger pads and heavier solder applications.2.5 mm Tip Diameter. Ensures adequate heat transfer for larger components.600°F Series. Optimized for temperature-sensitive applications.Power Tip Technology. Efficiently transfers heat to solder joints for faster, consistent soldering.RoHS Compliant. Safe for lead-free electronics manufacturing.Multiple Tip Geometries Available. Chisel, Bevel, and Conical to suit various soldering tasks.

Specifications

Manufacturer: MetcalPart Number: METSTTC-036Compatible Systems: MX-500, MX-5000, MX-5200; MX-RM3E and MX-H1-AV handpiecesTemperature Series: 600°F SeriesTip Type: 30° Chisel CartridgeTip Diameter: 2.5 mm (0.10")Power Tip: YesRoHS Compliant: YesAvailable Tip Geometries: Chisel, Bevel, Conical
