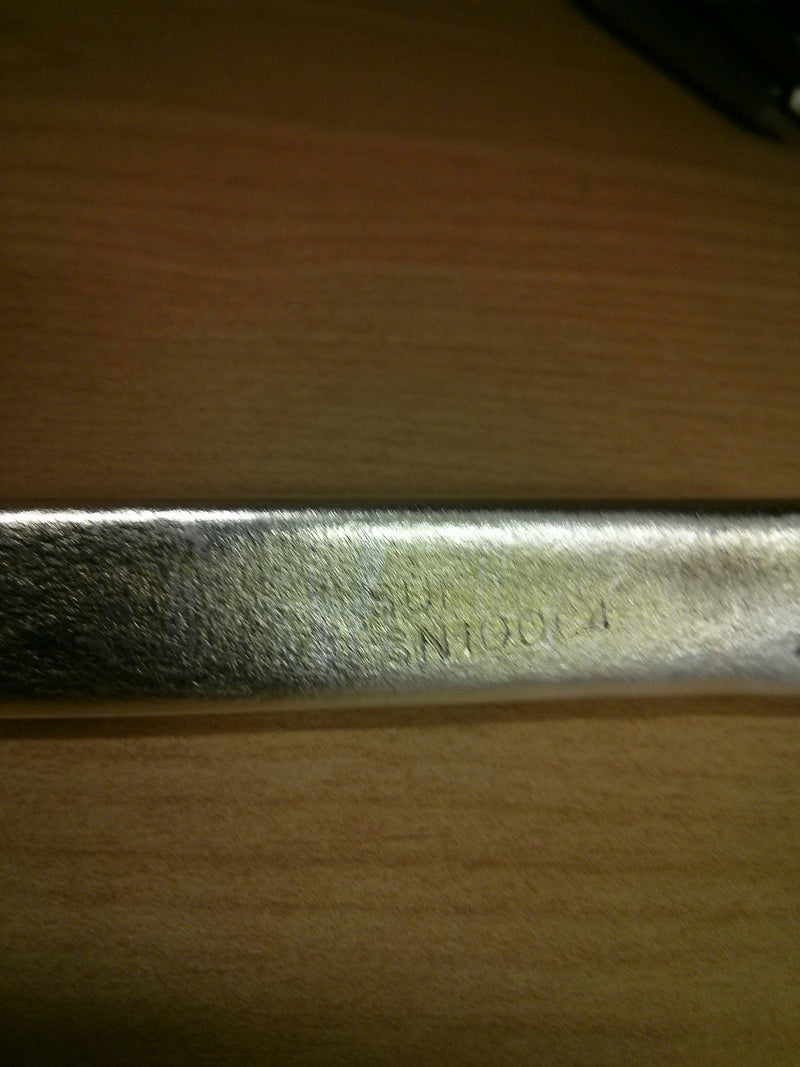

Nihon Lead Free Solder Bar SN100C4, 040 Flux, High Temp, 20kg's
Nihon Lead Free Solder Bar SN100C4, 040 Flux, High Temp, 20kg's

Nihon Lead Free Solder Bar SN100C4, 040 Flux, High Temp, 20kg's

SKU NSSN100C4-BAR
by Nihon
Sold out
$0.00 - $0.00
$0.00
$0.00
$0.00 - $0.00
$0.00
A high temperature dipping and tinning solder bar for dip soldering and tinning of copper wire, polyurethane coated wire and component terminations. For use at temperature up to 400°C. MOQ: 20 Kg's
Features & Benefits

SN100C4 make it possible to carry out dip soldering and tinning operations with minimum copper erosion. Completely halogen-free Does not prmote corrosion - induced whisker growth

Specifications

Wire Type: Lead Free Solder Bar Melting Point: 227-340°C Temperature Range: up to 400°C Alloy:SN100C contains tin, copper and a small amount of nickel + germanium Alloy Composition: Sn: Balance Cu: 4.0, Ni:.0.05 Ge: less than 0.01 Flux: 040 Bar Weight: Approx. 0.3Kg Box QTY: Approx. 58-64 bars/ box Bar Size: Length-350mm x Width-17mm x Height-8mm Box Weight: 20Kg,s MOQ: 20 Kg's
