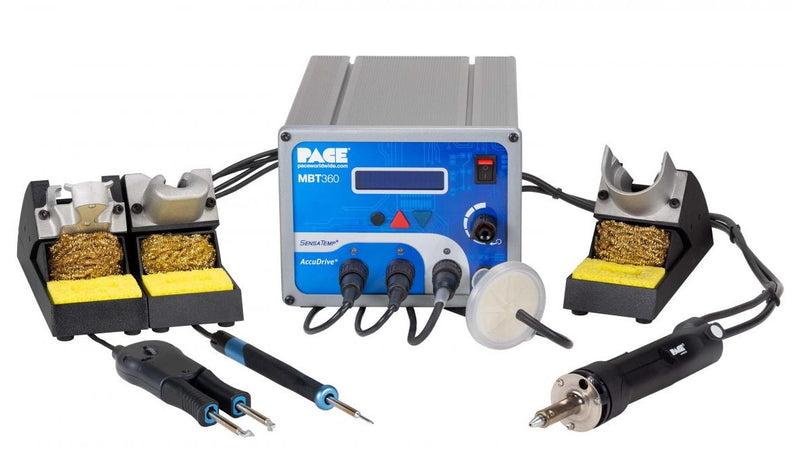

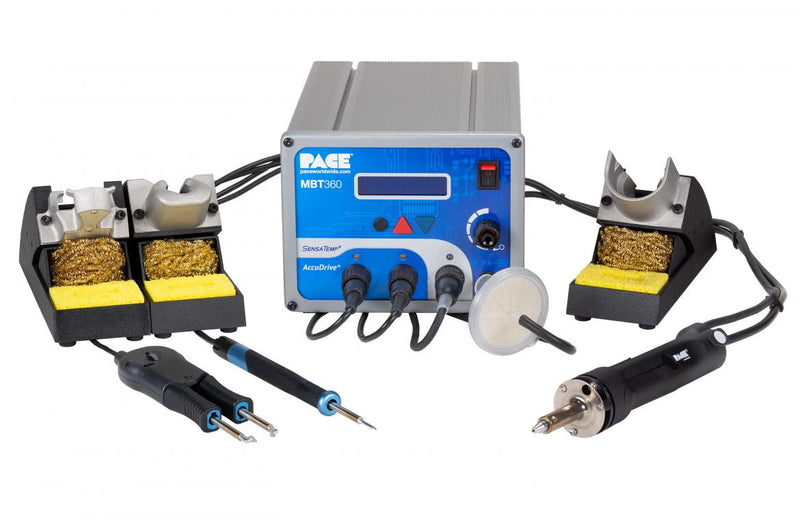

Pace MBT360 SYSTEM W/3 HANDPIECES, 230V
Pace MBT360 SYSTEM W/3 HANDPIECES, 230V
Pace MBT360 SYSTEM W/3 HANDPIECES, 230V
Pace MBT360 SYSTEM W/3 HANDPIECES, 230V

Pace MBT360 SYSTEM W/3 HANDPIECES, 230V

SKU 8007-0598
by Pace
Sold out
$0.00 - $0.00
$0.00
$4,785.00
$4,785.00 - $4,785.00
$4,785.00
MBT360 Multi-Channel Soldering and Rework Station w/ TD-200, MT-200 and SX-100 The MBT360 is truly the best of both worlds, combining PACE's renowned SensaTemp® heating technology, which boasts superior performance and versatility, with our new advanced AccuDrive® tip-heater cartridge capability for todays most challenging production soldering and rework applications. The MBT360 allows the user to customize their workbench with any AccuDrive or Sensatemp handpiece for maximum capability, versatility and economy. Only PACE offers complete interoperability and interchangeability across its entire new system and handpiece line. Buy what you need now. Add capability later. With PACEs new system and handpiece line, you can mix and match handpieces and systems, reduce inventory requirements and maximize cost savings!
Features & Benefits

Two AccuDrive® ports, one SensaTemp® port and the self-contained auto Snap-Vac pump. ISB and Auto-Off capability increases tip-life up to 6 times and greatly reduces tip costs. AccuDrive® Tip-Heater Cartridges meet and exceed ANSI/J-STD-001 Absolute Temperature Accuracy Requirement without the need for calibration. Backlit, digital LCD screen displays set and actual temperatures of all three channels Password protected settings allow the operator to work within an approved temperature range or at a single temperature.

Specifications

Power Requirements 230 VAC, 50 Hz (240 watts maximum)Power Ports 2 AccuDrive®, 1 SensaTemp®Self-Contained Internal Pump Snap-Vac® Vacuum/Adjustable Pressure CapabilityDimensions 135mm H X 165mm W X 260mm DWeight 5 Kgs Tip-to-Ground Resistance < 2 OhmsTemperature Stabililty 1.1°C (2°F)Temperature Accuracy Meets or exceeds ANSI J Std 001Set Temperature Range AccuDrive® 177-454°C (350-850°F) SensaTemp® 37-482°C (100-900°F)

Technical Data Sheet (TDS)
