Pace Setting Tool,Guide,Cir-Kit
Pace Setting Tool,Guide,Cir-Kit
Pace Setting Tool,Guide,Cir-Kit
Pace Setting Tool,Guide,Cir-Kit
Pace Setting Tool,Guide,Cir-Kit

Pace Setting Tool,Guide,Cir-Kit

SKU 6000-0054-p1
by Pace
$0.00 - $0.00
$0.00
$31.10
$31.10 - $31.10
$31.10

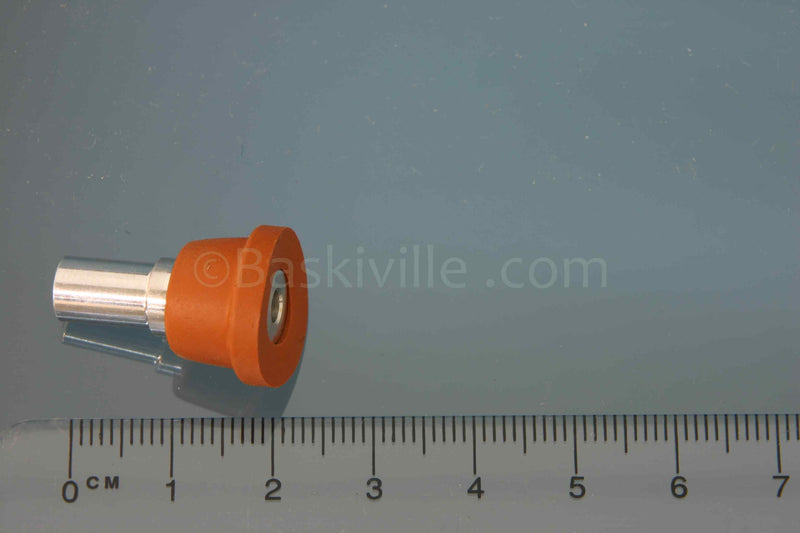

The PACE 6000-0054-P1 Setting Tool Guide is designed for use with the PACE Cir-Kit Non-ThermoBond and ThermoBond repair systems. It ensures precise alignment and stability of the upper setting tool during the installation of eyelets or funnelets on printed circuit boards. This guide provides consistent positioning to prevent misalignment and protect surrounding circuitry during PCB repair operations.

Stock available: 1

Features & Benefits

*Maintains accurate alignment of the upper setting tool during operation.*Protects surrounding circuit areas from accidental contact or damage.*Ensures consistent and repeatable repair results.*Genuine PACE part for full compatibility and reliability.*Suitable for both Non-ThermoBond and ThermoBond Cir-Kit systems.

Specifications

*Manufacturer: PACE Worldwide*Part Number: 6000-0054-P1*Product Type: Setting Tool Guide*Compatibility: Cir-Kit Non-ThermoBond and ThermoBond repair systems*NSN: 4470-01-088-4157*Function: Guides and stabilizes the upper setting tool for accurate eyelet or funnelet installation*Construction: Precision-machined metal or alloy for long-term durability

More Information

*Used to guide the upper setting tool in PCB repair and modification work.*Ensures accurate alignment for installing eyelets or funnelets in damaged plated-through holes.*Ideal for electronics service centers, repair facilities, and manufacturing environments.*Suitable for both Non-ThermoBond and ThermoBond circuit restoration processes.

Technical Data Sheet (TDS)
