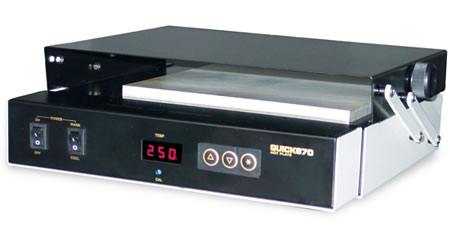

Quick, 870, Pre-Heat and Reflow Hot Plate
Quick, 870, Pre-Heat and Reflow Hot Plate
Quick, 870, Pre-Heat and Reflow Hot Plate
Quick, 870, Pre-Heat and Reflow Hot Plate
Quick, 870, Pre-Heat and Reflow Hot Plate

Quick, 870, Pre-Heat and Reflow Hot Plate

SKU QUI870ESD
by Quick
Sold out
$0.00 - $0.00
$0.00
$895.00
$895.00 - $895.00
$895.00
Features 1. Special heater, surface temperature distributes evenly. 2. Closed loop of sensor, PID control, precise and stable temperature. 3. Two switches control power supply and heating separately. Actual temperature of the plate will also display even under unheated condition, can avoid accidents. 4. Suitable for PCB preheating and other process which requires whole and even heating. 5. ESD safe design. Specifications Power 800 W Plate area 180 x 200mm Plate material Aluminium Temperature sensor K-type thermocouple Temperature range 50-300 deg C Ambient conditions 0-40. Temperature stability ±2 Dimensions 280(L) x 290(W) x 100(H)mm Weight About 5.8kg
Features & Benefits

Special heater, surface temperature distributes evenly. Closed loop of sensor, PID control, precise and stable temperature. Two switches control power supply and heating separately. Actual temperature of the plate will also display even under unheated condition, can avoid accidents. Suitable for PCB preheating and other process which requires whole and even heating. ESD safe design.

Specifications

Power 800 WPlate area 180 x 200mmPlate material AluminiumTemperature sensor K-type thermocoupleTemperature range 50-300 deg CAmbient conditions 0-40.Temperature stability ±2Dimensions 280(L) x 290(W) x 100(H)mmWeight About 5.8kg
