Quick Soldering Station TS2200 90 Watt Output

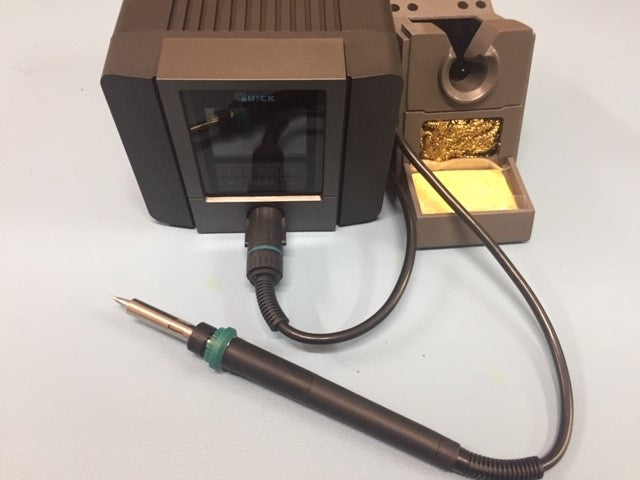

ts2200 soldering station.jpg

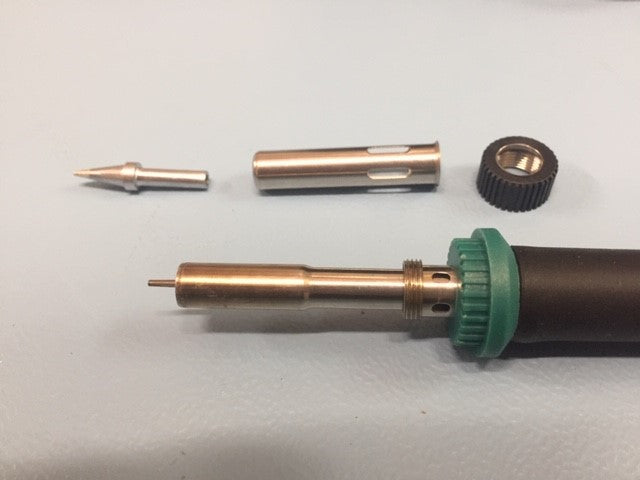

ts2200 hand piece.jpg
ts2200 soldering station.jpg
ts2200 hand piece.jpg

Quick Soldering Station TS2200 90 Watt Output

SKU QUITS2200
by Quick
Sold out
$0.00 - $0.00
$0.00
$285.00
$285.00 - $285.00
$285.00
TS2200 soldering station and iron Handle / iron TSS31A Heating element H1901A Soldering tip 200 series Power 90W Heating principle High-frequency Operating voltage 110V/220V AC Temperature range 100~480? Temperature stability ±2? (Still air without load) Tip to ground resistance <2O Tip to ground potential <2mV Soldering tip/ heating element Split type Outer dimensions 137 x 168 x 114(mm)
Features & Benefits

High-Frequency Heating (90W): Rapid heating for efficient soldering and minimal downtime.Wide Temperature Range (100–480°C): Supports a variety of solder types, including lead-free alloys.Stable Temperature Control: ±2°C stability ensures consistent solder joints and reliable results.ESD Safe: Tip-to-ground resistance <2O and tip-to-ground potential <2mV protects sensitive electronic components.Split-Type Handle & Heating Element: Simplifies maintenance and allows quick replacement of parts.Universal Voltage Operation (110/220V AC): Suitable for use in multiple regions.Tip Compatibility: Works with Quick 200 series soldering tips for versatile soldering applications.

Specifications

Manufacturer: QuickPart Number: QUITS2200Power: 90WHeating Principle: High-frequencyOperating Voltage: 110V / 220V ACTemperature Range: 100–480°CTemperature Stability: ±2°C (still air, no load)Tip-to-Ground Resistance: <2 OTip-to-Ground Potential: <2mVHandle / Iron Model: TSS31AHeating Element Model: H1901ASoldering Tip Compatibility: Quick 200 seriesTip / Heating Element Type: Split-typeOverall Dimensions: 137 × 168 × 114mm
