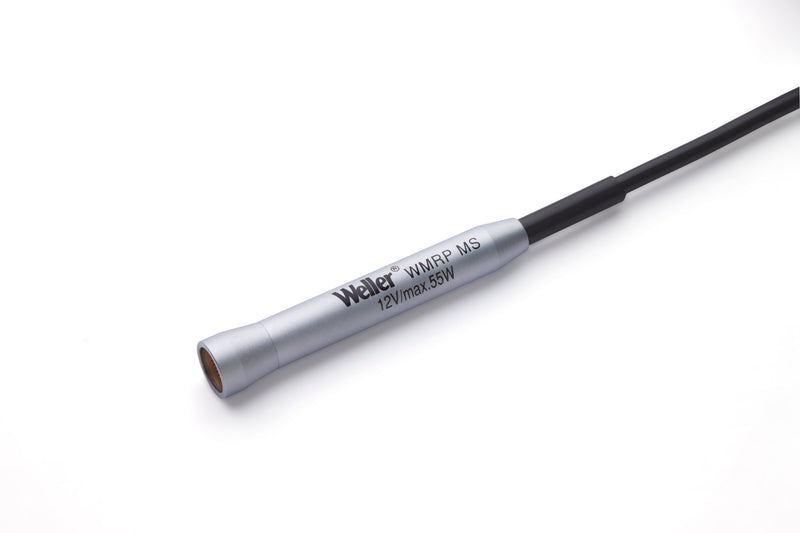

Weller soldering hand piece WMRP-MS

Weller soldering hand piece WMRP-MS

SKU WELWMRPMS
by Weller
Sold out
$0.00 - $0.00
$0.00
$0.00
$0.00 - $0.00
$0.00
Weller Micro soldering iron WMRP MS 40 W, 12 V (handpiece without tips) for Active-Tip Heating Technology Military Standard For very small components with high energy demand Micro soldering iron 40 W, 12 V For miniature works under a microscope For rework stations WR 3M and soldering station WT 2M. RT Soldering tips can be exchanged quickly and easily Active Tip (Cartridge)-System allows exchange of soldering tip despite a hot soldering iron Extrmely short heating time Standby function Excellent reaction time Safety rest T0051515699 Voltage 12 V Power 40 W (55 W with RT 11MS) Heating time (approx.) in seconds (50–350 °C/120–660 °F) 3 Silver Line heating element technology na Tip range RT MS Temperature range °C 100 - 450 Temperature range °F 150 - 950 Power Response heating element technology na Integrated direct extraction Attachment T0052918599 WX compatible - Supply unit WD 1M, WR 3M, WD 3M Active Tip heating element technology on ESD-safe on WT compatible on Temperature range (depends on tool) °C 93 - 454 Temperature range (depends on tool) °F 200 - 850
Features & Benefits

High-precision micro soldering handpiece for very small componentsActive-Tip Cartridge System allows hot tip replacement without toolsExtremely short heating time (~3 seconds from 50–350 °C)Standby function conserves energy and prolongs tip lifeExcellent reaction time and temperature stabilityESD-safe for sensitive electronics workCompatible with WR 3M, WT 2M, WD 1M, and WD 3M stationsSupports rapid exchange of RT-MS series soldering tipsDesigned to military standards for reliability and precision

Specifications

Manufacturer: WellerPart Number: WELWMRPMSProduct Type: Micro Soldering Handpiece / IronVoltage: 12VPower: 40W (55W with RT 11MS tip)Temperature Range: 100–450°C (200–950°F)Heating Time (50–350°C): ~3secondsTip Compatibility: RT-MS series tipsSafety Rest: T0051515699Active Tip Heating Technology: YesESD Safe: YesIntegrated Extraction (optional): Attachment T0052918599Compatible Stations: WD 1M, WR 3M, WD 3M, WT compatibleUse Case: Micro soldering and rework for miniature components

Technical Data Sheet (TDS)
