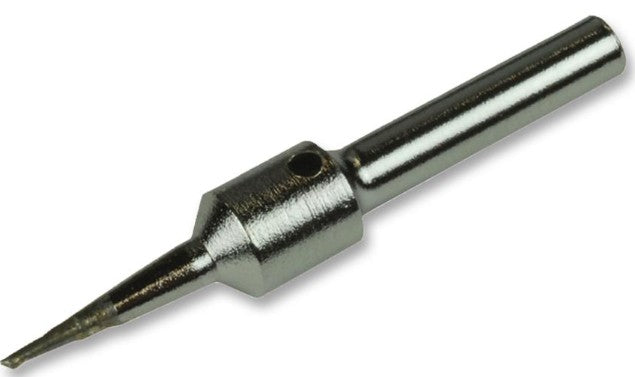

WELLER SOLDERING TIP EC3001/2A

WELLER SOLDERING TIP EC3001/2A

SKU WELEPH101
by Weller
$0.00 - $0.00
$0.00
$14.55
$14.55 - $14.55
$14.55
TIP,MICROPOINT,1/64 inch Solid copper plated with iron all over Nickel and chromium behind the working surface Designed to provide maximum heat transfer from the heater to the tip Individually bagged Fits Tool(s): EC1301/EC1302 Tip Style: Micropoint Tip Width O/D: .015 in./.38 mm Tip Thickness/Height/ I/D: Not Measured Reach/Length: .437 in./11.1 mm

Stock available: 2

Features & Benefits

Micropoint tip: Ideal for fine soldering and tight padsSolid copper core: Maximizes heat transfer from the heater to the tipIron-plated working surface: Extends tip life and ensures good solder wettingNickel/chromium backing: Adds durability behind the working surfaceIndividually packaged: Protected from damage before use

Specifications

Manufacturer: WellerPart Number: WELEPH101Tip Style: MicropointTip Width / Outer Diameter: 0.015 in / 0.38 mmTip Length / Reach: 0.437in / 11.1mmTip Thickness: Not measuredCompatible Tools: EC1301 / EC1302 soldering ironsConstruction: Copper core with iron plating, nickel/chromium backing
