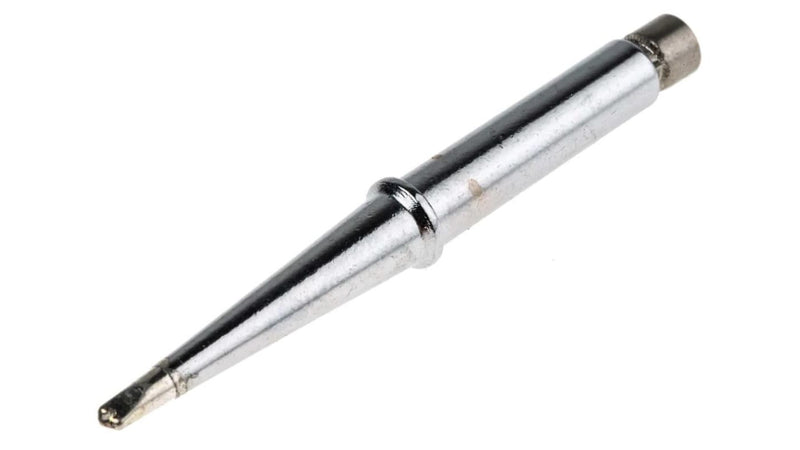

Weller Soldering Tip W60D CT5B8

Weller Soldering Tip W60D CT5B8

SKU WELCT5B8
by Weller
$0.00 - $0.00
$0.00
$20.50
$20.50 - $20.50
$20.50
TIP,SOLDER,3/32"800F,TAPER Tips are solid copper plated with iron all over Nickel and chromium behind the working surface Designed to provide maximum heat transfer from the heater to the tip Individually bagged Fits Tool(s): W60P Tip Style: Screwdriver, 800° Tip Width O/D: .093 in./ 2.36 mm Tip Thickness/Height/ I/D: .02 in./.51 mm Reach/Length: 1.15 in./29.21 mm

Stock available: 11

Features & Benefits

Screwdriver-style tip shape: Flat, wide surface for versatile soldering across pads, leads, and wiresHigh temperature rating (800°F): Supports efficient heat delivery for tougher jointsSolid copper core: Ensures excellent heat conductionIron plating over copper: Protects the tip from rapid wear while maintaining wetting propertiesNickel/chromium backing: Adds durability behind the working surfaceIndividually bagged: Protected storage and handling

Specifications

Manufacturer: WellerPart Number: WELCT5B8Compatible Tools: Weller W60P and similar irons accepting CT5 series tipsTip Style: Screwdriver / Chisel hybridTip Width / Outer Diameter: 0.093in (2.36mm)Tip Thickness / Height: 0.02in (0.51mm)Reach / Length: 1.15in (29.21mm)Maximum Temperature Rating: 800°F (427°C)Construction: Solid copper with iron plating and nickel/chromium backing
