Bench Mat Kit - Grey 2ft x 4ft 1.22m x 600mm

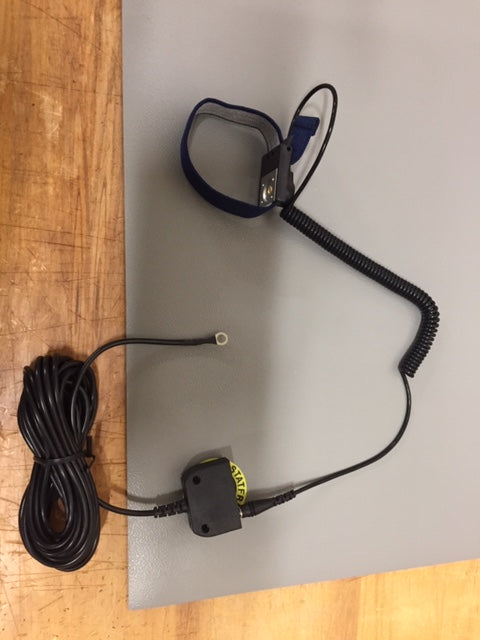

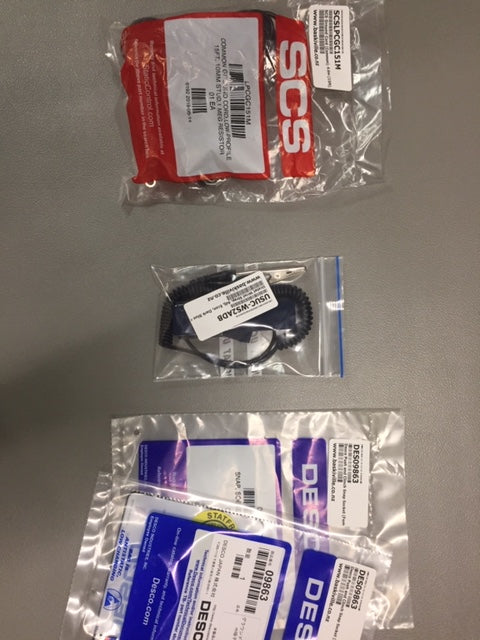

Bench mat - Grey 2ft x 4ft, 1.2m x 600mm includes: 1 x Mat 1.2m x 600mm Wrist Strap p/n USUC-WS2ADB Ground Cord w/ resistor 10mm, w/ 2 outlets p/n MEC06Z-001 3m cord 1 x Fitted Snap Socket STAT-MAT SPEC. 2 LAYER DISSIPATIVE RUBBER FLOOR MAT * Easy to clean * Resistant to heat and chemicals * Reflection breaking lightly embossed surface CONSTRUCTION STAT-MAT protects static sensitive products as it is composed of two layers, with the following characteristics: TOP LAYER (Coloured) Static dissipative layer to discharge static fields at the right speed to prevent damages BOTTOM LAYER (Black) Conductive layer to quickly drain to ground all charges filtered by the top layer MAIN CHARACTERISTICS * Reflection breaking embossed surface to reduce glare and improve operator performance * High resiliency gives protection against small collisions * Prevention of sliding of delicate components due to the high coefficient of friction, which is increased by the embossed surface * Heat Resistance: This high quality rubber compound does not melt and does not burn coming into contact with hot metal parts or soldering debris * High chemical resistance * Oil resistant * Suitable for free laying (does not require application with adhesives) * Suitable for continuous monitoring AVAILABLE in GREY or BLUE PRODUCT PERFORMANCES Surface Resistance: EN 100015.1 = 5 x 10*6 - 5 x 10*8 EOS/ESD.S4.1990/100 V = 1 x 10*7 - 1 x 10*8 EOS/ESD.S4.1990/10 V = 1 x 10*7 - 1 x 10*8 Resistance/Ground: EN 100015.1 = 5 x 10*6 - 5 x 10*8 EOS/ESD.S4.1990/100 V = 1 x 10*6 - 1 x 10*8 EOS/ESD.S4.1990/10 V = 1 x 10*6 - 1 x 10*8 Charge Decay: FED TM 101 = (from 5000 to 50V) = 0.1 sec. Lifetime dissipation warranty *One (1) ground lead is recommended for each 10 linear feet (3 metres) for optimum performance.
