Desco Grd Cord Mat10mm Stud NO Resistor w/ Screw
Desco Grd Cord Mat10mm Stud NO Resistor w/ Screw
Desco Grd Cord Mat10mm Stud NO Resistor w/ Screw
Desco Grd Cord Mat10mm Stud NO Resistor w/ Screw
Desco Grd Cord Mat10mm Stud NO Resistor w/ Screw

Desco Grd Cord Mat10mm Stud NO Resistor w/ Screw

SKU DES09814
by Desco
$0.00 - $0.00
$0.00
$44.00
$44.00 - $44.00
$44.00

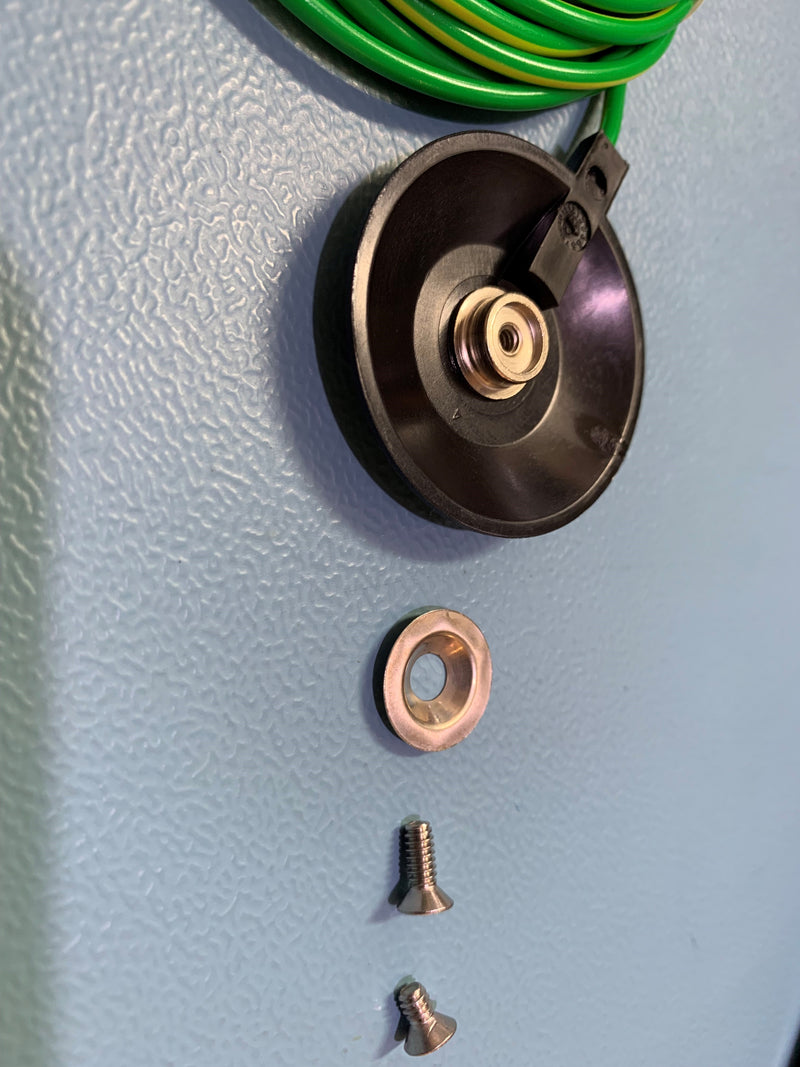

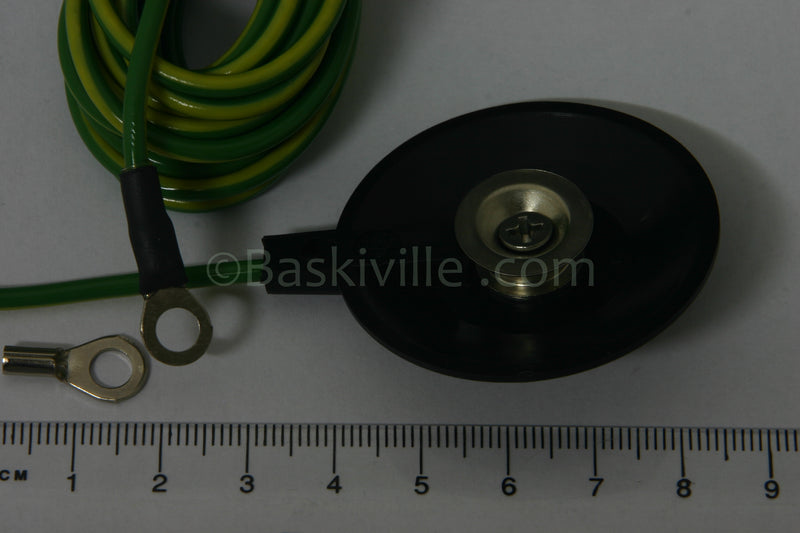

This is a flush mount type cord that has NO RESISTOR fitted. They can be screwed direct to earthing mat or attached with a DES09864 Stud Snap Please note that caution should be used, as this is for special applications only NO RESISTOR fitted. 4.6m (15 foot) cord, Male stud connection underneath to fit into mat socket Low profile Reduces inadvertent snagging or tripping that may disconnect ground cord 10mm (0.395") snap stud Easily snaps to mat 10mm socket snap, flush to mat surface Stud has threaded hole; 6-32x1/4" flat head screw and countersunk washer are provided Allows ground cord to be optionally bolted mat; keeps cord from disconnecting; ensures proper grounding. Click HERE for installation illustration. Ring terminal at end of ground cord Allows easy attachment to electrical ground Versatile Can be used with worksurface mat or floor mat No resistor included, meets Grounding standard ANSI/ESD S6.1 No resistor is required, but with resistor is acceptable Made in The United States of America

Stock available: 41

Features & Benefits

*Flush mount, low-profile design: Reduces inadvertent snagging or tripping that could disconnect the cord.*10mm snap stud: Fits securely into mat socket for flush installation.*Threaded stud hole: Includes screw and countersunk washer for optional bolting to mat, ensuring reliable grounding.*Ring terminal at cord end: Easy attachment to electrical ground.*Versatile: Suitable for worksurface mats or floor mats.*No resistor fitted: Meets ANSI/ESD S6.1 grounding standard for applications where a resistor is not required.*Made in USA: Ensures high-quality manufacturing standards.

Specifications

*Manufacturer: Desco*Part number: DES09814*Product type: Ground cord for mat*Cord length: 4.6m (15ft)*Stud size: 10mm (0.395in) snap stud*Termination: Ring terminal*Resistor: None*Optional installation: Can be bolted to mat using included screw and washer*Compatibility: Worksurface mats or floor mats*Standard compliance: ANSI/ESD S6.1*Origin: Made in USA

More Information

Applications:*Specialized ESD grounding: For situations where no resistor is required.*Workstation or floor mat grounding: Provides reliable grounding for mats.*Electronics assembly and repair: Ensures proper grounding for sensitive components.*Laboratories and cleanrooms: Maintains safe ESD environment.*Maintenance and field work: Secure connection to electrical ground points.*Training and education: Demonstrates proper grounding techniques in specialized applications.

Technical Data Sheet (TDS)
Operators Manual
Brochure
