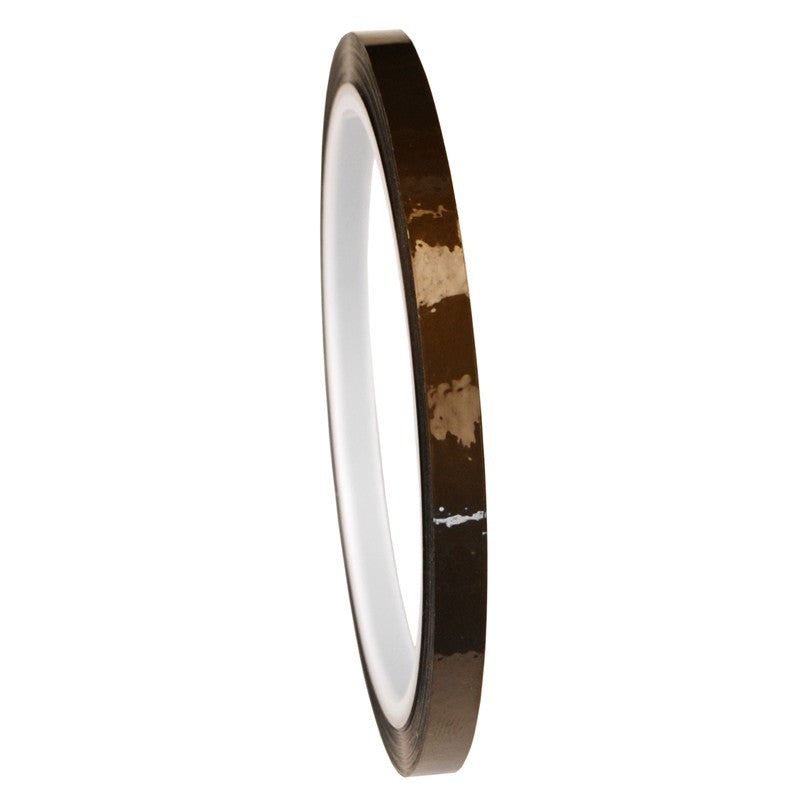

Desco Kapton Tape 0.25" (6mm) x 36Yds
Desco Kapton Tape 0.25" (6mm) x 36Yds
Desco Kapton Tape 0.25" (6mm) x 36Yds

Desco Kapton Tape 0.25" (6mm) x 36Yds

SKU DES81270
by Desco
$0.00 - $0.00
$0.00
$70.00
$70.00 - $70.00
$70.00
TAPE, WESCORP, POLYIMIDE, HI TEMP, 1/4 IN x 36 YDS * Removal leaves little or no residue * Masking off PCBs for IR reflow ovens or wave soldering under 572°F (300°C) ~ 10 seconds * Near zero voltage generation when tape removed from PCB (at 50% relative humidity) * Near zero voltage generation when tape unrolled from roll (at 50% relative humidity) * Low-sloughing plastic core * Ideal for masking gold leads and other components on boards populated with sensitive integrated circuits * For best results apply to board using a rubber roller * Adhesive surface resistivity 10E3 to 10E4 Ohms * Max Temperature 572°F (300°C) 10 seconds * Adhesive Strength 1 N/cm (DIN), 5 oz./in2 (ASTM) * 1.0 mil thick (0.0254mm) Polyimide Film (DuPont Kapton® or equivalent) * Conductive Polysiloxide Adhesive * Total Thickness 0.060 mm (DIN), 2.4 mil (ASTM) * Colour Brown opaque * Adhesive Type Silicone * Tensile Strength 50 N/cm (DIN), 28 lbs/in2 (ASTM) * Elongation 70% (DIN & ASTM) * Lead-free RoHS compliant

Stock available: 1

Features & Benefits

• High-Temperature Resistance: Withstands up to 572°F (300°C) for short durations (10 seconds).• Near Zero Static Generation: Prevents voltage spikes during tape removal or unrolling (50% RH).• Clean Removal: Leaves little or no residue, protecting delicate components.• Low-Sloughing Core: Polyimide film ensures durability and ease of handling.• ESD-Safe Adhesive: Conductive polysiloxide adhesive with surface resistivity 10E3–10E4 ohms.• Durable & Flexible: 1.0 mil (0.0254 mm) film thickness with 70% elongation and high tensile strength.• Lead-Free & RoHS Compliant.

Specifications

• Manufacturer: Desco• Part Number: DES81270• Product Type: High-Temperature Kapton Tape• Width: 0.25 inch (6 mm)• Length: 36 yards (32.9 m)• Film Material: Polyimide (DuPont Kapton® or equivalent)• Adhesive: Silicone, conductive polysiloxide• Total Thickness: 0.060 mm (2.4 mil)• Adhesive Strength: 1 N/cm (DIN), 5 oz/in² (ASTM)• Tensile Strength: 50 N/cm (DIN), 28 lbs/in² (ASTM)• Elongation: 70% (DIN & ASTM)• Surface Resistivity: 10E3–10E4 ohms• Max Temperature: 572°F (300°C) for 10 seconds• Color: Brown opaque• Compliance: Lead-Free, RoHS Compliant

More Information

Applications• Masking PCBs during IR reflow or wave soldering• Protecting gold leads and sensitive integrated circuits• Temporary insulation and surface protection in high-temperature processes• ESD-sensitive electronics assembly and testing

Technical Data Sheet (TDS)
