GROUNDING CORD ASSEMBLY
GROUNDING CORD ASSEMBLY

GROUNDING CORD ASSEMBLY

SKU SCSLPCGC151M
by Baskiville
Sold out
$0.00 - $0.00
$0.00
$0.00
$0.00 - $0.00
$0.00

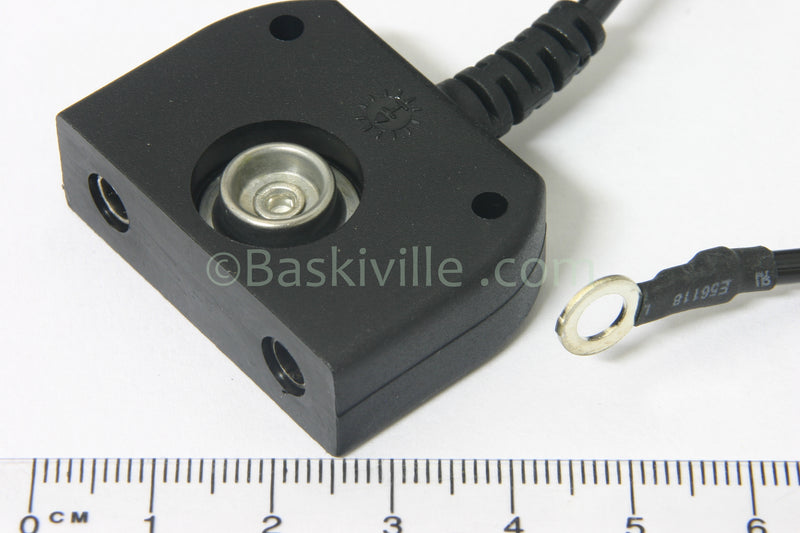

With a low-profile top, this common point ground cord connects two wrist straps and a work surface to ground, helping ensure that all parts are at the same ground potential. Easy to install. Simply snap it to a mat or work surface. Plug in the wrist strap coil cord, and connect the ring terminal to ground. Provides holes for permanent mounting to a bench.
Features & Benefits

10MM Stud snap - compatible with mats that have a 10MM Socket snap Two banana jacks - Provides two grounding points for wrist straps or carts Ring terminal at end of ground cord - Allows easy attachment to electrical ground Low profile - Reduces snagging of clothes and work instrumentsExtra ring terminal included - Allows for customizing cord length Made in America

Specifications

Length: 4.6mEnd Connection Type: Ring TerminalSnap Stud Type: Stud (Male)Snap Stud Size:10mmResistor: 1 MegohmColour: Black
