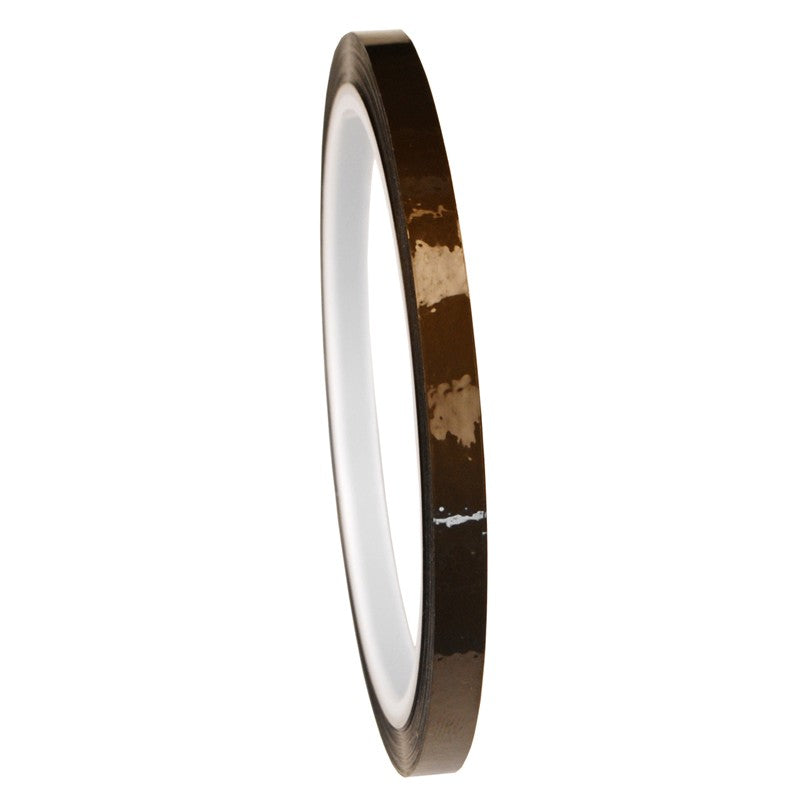

Shercon 22-0750 Kapton Tape, Hi Temp, 19mm x 33m

Shercon 22-0750 Kapton Tape, Hi Temp, 19mm x 33m

SKU SHN22-0750
by Shercon
$0.00 - $0.00
$0.00
$77.00
$77.00 - $77.00
$77.00
Shercon Tape, Hi Temp, Polyamide 3/4" (19mm), Kapton Tape x 36 Yds. * RoHS compliant * Temperature resistant to 260°C/500°F * 2.5mil thick (1.0 film/1.5 adhesive) * Cross linked silicone adhesive Product Description * Masks solder from edge connectors, holes, and other areas on circuit boards during the wave-soldering process. * Excellent high-temperature resistance (260°C/500°F) and is easily removed without residues. * Comes in 36 yd. rolls.

Stock available: 4

Features & Benefits

High-Temperature Resistance: Withstands up to 260°C / 500°F for wave-soldering and reflow applications.Clean Removal: Leaves no adhesive residue, keeping PCB surfaces intact.Durable Kapton Material: Provides strong mechanical and electrical insulation.Cross-Linked Silicone Adhesive: Maintains adhesion under high-heat conditions.RoHS Compliant: Meets environmental and safety standards.Wider Tape Width: 19mm (3/4") ideal for masking larger areas with precision.

Specifications

Manufacturer: SherconPart Number: 22-0750Tape Type: High-temperature Kapton (polyimide) tapeWidth: 19mm (3/4")Length: 33m (36yd)Thickness: 2.5mil (1.0mil film / 1.5mil adhesive)Adhesive Type: Cross-linked siliconeTemperature Rating: Up to 260°C / 500°FCompliance: RoHS
