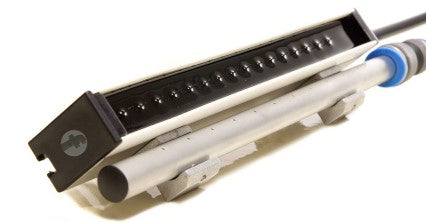

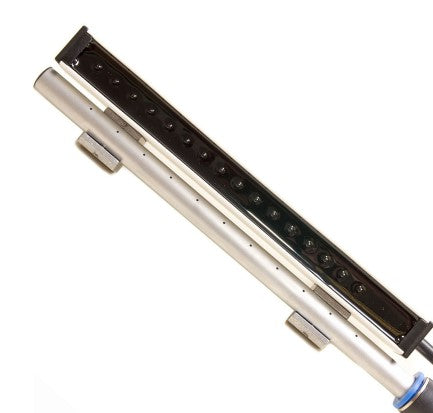

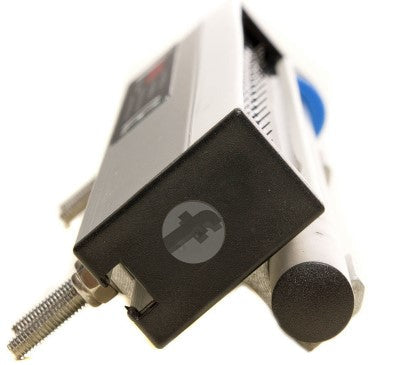

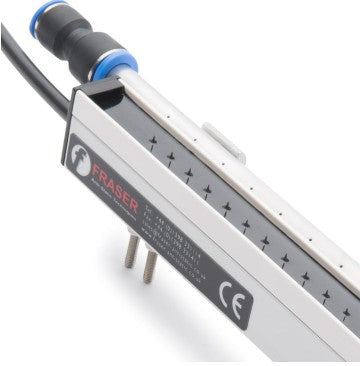

Fraser 1250-S, AIR BAR Static Eiminator w/studs sliding in slot, 250mm

The modern design gives high performance and completely shock less operation. Stay-sharp etched emitters for better long term performance. Emitters at 10mm pitch provide the most intense field of static neutralisation.All electronic components are fully encapsulated for maximum reliability.They are suitable for food, medical, pharmaceutical and many cleanroom applications. Robust construction ensures a long life of high performance.Simple to install - with fixed mounting studs (1250) or studs sliding in slot (1250-S).Operating distances of up to 150mm, best distance 20 - 50mm. Washable and easy to clean

Length: 200mm Construction: Anodised aluminium, epoxy resin, ABS and hardened etched emitters.Cable: Hi-Flex 30 kV screened cable with 70 mm bend radius. Standard length is 2 m - longer lengths can be specified at time of order (subject to maximum load on power unit),. 90º cable exit option. Bars may also be supplied in series- joined by cable. Also available with detachable cable- see datasheet for Model 1255.Safety: 5 mA maximum current from Power Unit. High voltage resistance inside bars further limits current below 50 µA.Protection Classification: IP66. Fully sealed.Environment: 60º maximum temperature. 70% rH non-condensing max.Power Units: Use with Fraser 5.5 kV and 6 kV Power Units.Standards: CE. UL (US and C) Listing is a free of charge option.Available lengths : From 60 mm to 6000 mm.Also available: 1250 (Fixed mounting Studs0#Includes1 x E1250-S-0250 Ionising Bar w/ studs sliding in slot (S Model)SOLD SEPARATELY Power supply (HP50 series) with power cord.
