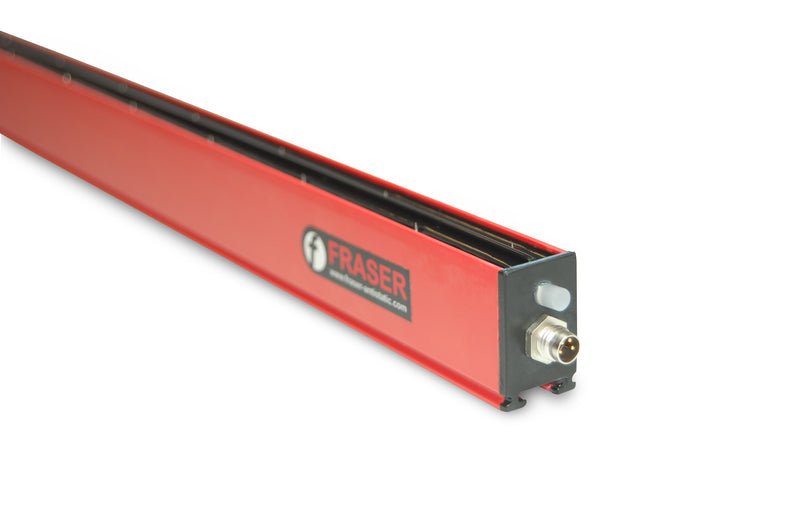

Fraser 3014 Anti-Static Ionising Bar, Compact, Short range 530mm

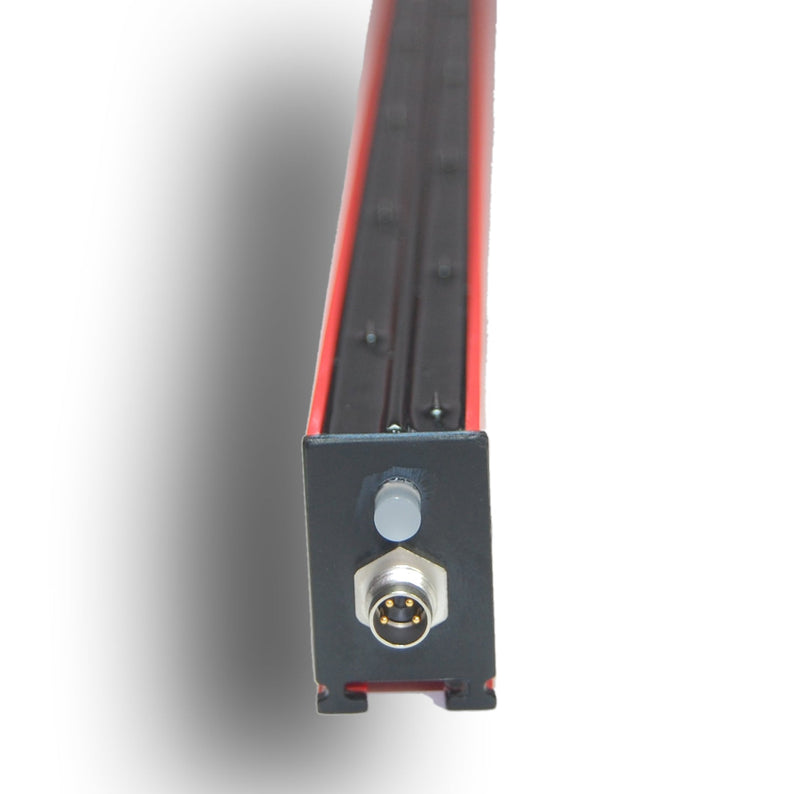

fra3014 - end view.jpg

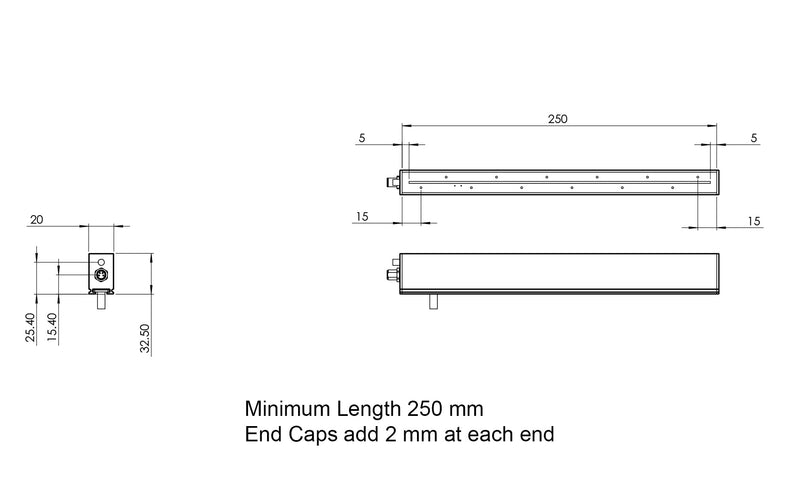

fra3014 - techincal.jpg
fra3014 - end view.jpg
fra3014 - techincal.jpg

Fraser 3014 Anti-Static Ionising Bar, Compact, Short range 530mm

SKU FRA3014-530
by Fraser
Sold out
$0.00 - $0.00
$0.00
$0.00
$0.00 - $0.00
$0.00
Market leading performance in a very compact bar for compatibility with modern machinery. Integrated high voltage power supply, requires only a low voltage 24 V DC input. EXTERNAL POWER CORD TO BE ORDERED EXTRA The 3014 represents another leap forward in DC Static Control technology from Fraser Anti-Static Techniques. This compact 24 V DC static eliminator is an ideal (and more powerful) alternative to traditional AC powered static control bars. The compact profile allows the bar to be situated closer to the material being treated and more easily integrated with modern machinery designs. Emitters made from tungsten for best long term performance; Resistively coupled for shockless operation. Cleanroom complatible to ISO4 Provides 7.5kV of ionisation power LED status indication: Bar OK: (green), fault: (red). Clean Me: (alternating red/green). Remote monitoring of operational status and cleanliness through 24 V signals. Effective length = 20 mm less than overall length. Standard M8 4 pin connector. Protected against undervoltage, overload and reverse polarity wiring Best operational distance: 20 mm to over 150 mm. 530mm long High Voltage Output: Up to 7.5 kV supply integrated into Bar.
Features & Benefits

Emitters made from tungsten for best long term performance; Resistively coupled for shockless operation.Cleanroom complatible to ISO4Provides 7.5kV of ionisation power LED status indication: Bar OK: (green), fault: (red). Clean Me: (alternating red/green). Remote monitoring of operational status and cleanliness through 24 V signals. Effective length = 20 mm less than overall length. Standard M8 4 pin connector.Protected against undervoltage, overload and reverse polarity wiring Best operational distance: 20 mm to over 150 mm.

Specifications

530mm longElectrical Supply:Input: 24 V DC (21-27 V), max current 0.5 A.M8 x 4 pin connector.M8 x 4 core cable to be ordered separately.90 -250 V PSU also available.Size and construction:Profile 32.5 high x 20 mm. wideMinimum length 250 mm then in 40 mm steps to 4010 mm.FR-ABS Industrial grade extrusion, epoxy resin, tungsten.IP66. Fully sealed.Weight:0.25 m = 0.28 kg then 0.51 kg per additional metre.System Monitoring:LED on endcap:green = all OKgreen/red flashing = needs cleaningred = faultRemote monitoring makes this information available with a 24 V signal from the Bar to a PLC or other destination.This voltage is taken from the Bar - no additional power source is required.Compatible with IEC 61131-2 ,Type 1, and `Type 3` PLC inputs.Signal protected against shorting and mis-wiring.High Voltage Output:Up to 7.5 kV supply integrated into Bar.

Technical Data Sheet (TDS)
