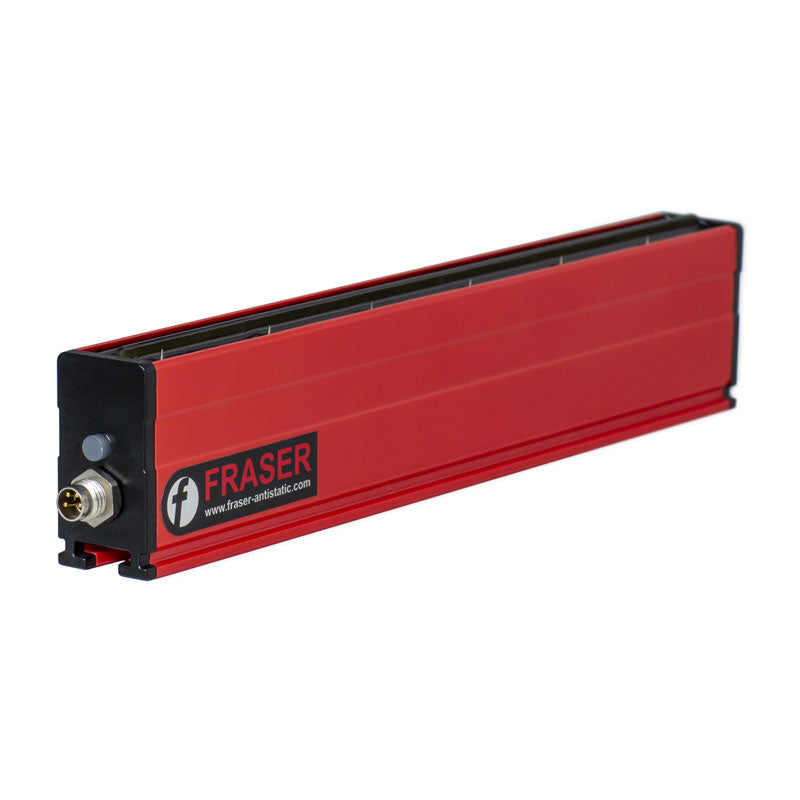

Fraser 3024 Anti-Static Ionising Bar, Compact, Short range 150mm

The 3024 Compact 24V DC short-range static eliminator bar meets the requirements of high-performance machinery where space is constrained. 150mm EXTERNAL POWER CORD TO BE ORDERED EXTRA It is the only bar available at this scale* with built-in electronics and delivers powerful static elimination at close range to a substrate or other material. The 3024 Compact delivers up to 7.5kV integrated in the bar and is ideal for fast moving materials at speeds up to 1000m/min. Its flexibility makes it suitable for most industrial processes, including pharmaceutical and food manufacturing, and it is particularly well suited to web and sheet applications where space is limited. A choice of 150mm or 200mm lengths. Optimum operating distance of 20mm to 50mm and maximum 150mm. 100% coverage. Effective length = Overall length. No dead zone. Shockless, resistively coupled tungsten emitters for unlimited life. Suitable for material speeds up to 1,000m/min. LED status indication: Bar OK (green), fault (red). Remote monitoring of operational status. Standard M8 4-pin connector. Protected against undervoltage, overload and reverse polarity. An air boost bar option is also available. #Includes 1 x 3024CIonising Bar Power Supply (incl. power cord) sold separately p/n FRAPSU
