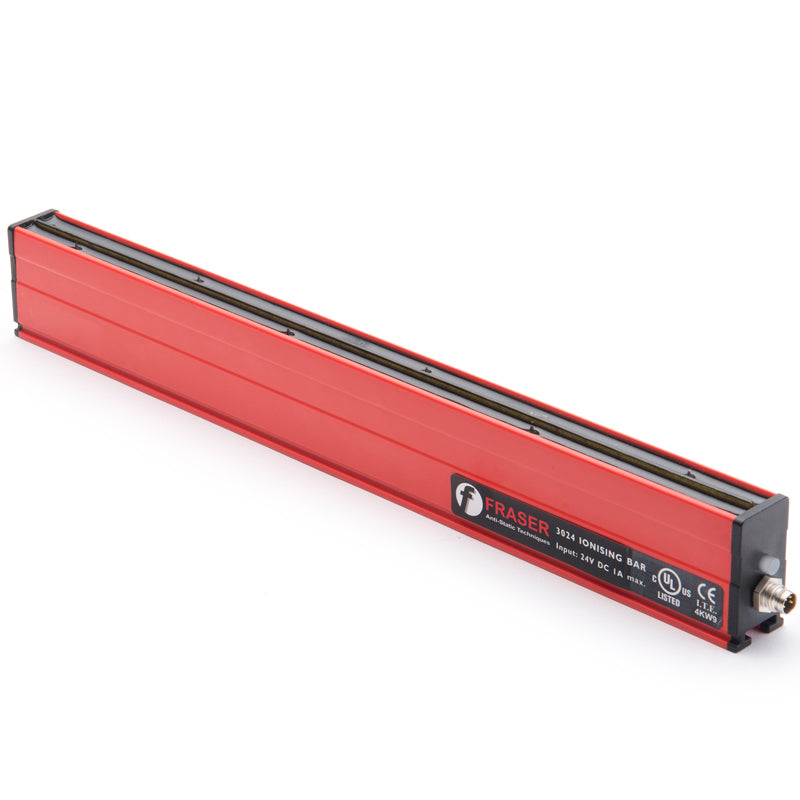

Fraser 3024F Short Range Anti-Static Ionising Bar, 11 Kv, 1300mm
Fraser 3024F Short Range Anti-Static Ionising Bar, 11 Kv, 1300mm
Fraser 3024F Short Range Anti-Static Ionising Bar, 11 Kv, 1300mm

Fraser 3024F Short Range Anti-Static Ionising Bar, 11 Kv, 1300mm

SKU FRA3024F-1200
by Fraser
Sold out
$0.00 - $0.00
$0.00
$0.00
$0.00 - $0.00
$0.00
The 3024F is the ultimate static eliminator for machinery manufacturers: compact, with built-in electronics, 24 V DC supply and very powerful performance. Tested at speeds up to 1300 m/min, the 3024F Static Eliminator provides short range static neutralisation to meet the requirements of high performance machinery. EXTERNAL POWER CORD TO BE ORDERED EXTRA Length: 1200mm #Includes 1 x 30241F-1200 Ionising Bar Power Supply (incl. power cord) sold separately p/n FRAPSU
Features & Benefits

Operating distance 25 -150 mm25 mm emitter pitch for intense ionisationTungsten emitters guarantee an unlimited life, resistively coupled for shockless operationNo dead zone: active ionisation length equals physical length of the bar24 V DC operation, with 11 kV ionising power integrated into barLED indication of operational status of bar, with duplicate remote signals for PLC or to power external lamps, relaysRemote on/off switchingThe 3024F Static Eliminator is specified by hundreds of OEMs and used by manufacturers in countless industries worldwide.

Specifications

Construction: FR-ABS industrial grade extrusion, epoxy resin, tungsten emitters.Dimensions: 22 x 41.5 mm (W x H).Available Lengths: minimum order length 250 mm, then in 50 mm steps to 5000 mm.Weight:1.1 kg/m.Output Voltage: Up to 11 kV supply integrated into bar.Remote Monitor / Local Status Indication: Signals available: ‘Bar OK’ and ‘Fault’. Uses 24 V supply to send signal from the bar to the PLC or other destination. Bi-colour LED on endcap for local status indication.Electrical Input: 24 V DC (21-28 V), maximum current required 0.5 A. M8 x 4-pin connector.The M8 x 4-core cable must be ordered separately.Environmental: 0 - 55 °C, 70 % rH non-condensing max. IP66. Fully sealed.Certification: CE, CB and UL. Cleanroom classification to ISO Class 4.Options: 100 - 250 V AC-DC 24 V Power Supply (Part No: E3024-PSU).Length: 1200mm#Includes1 x 30241F-1200 Ionising BarPower Supply (incl. power cord) sold separately p/n FRAPSU

Technical Data Sheet (TDS)
