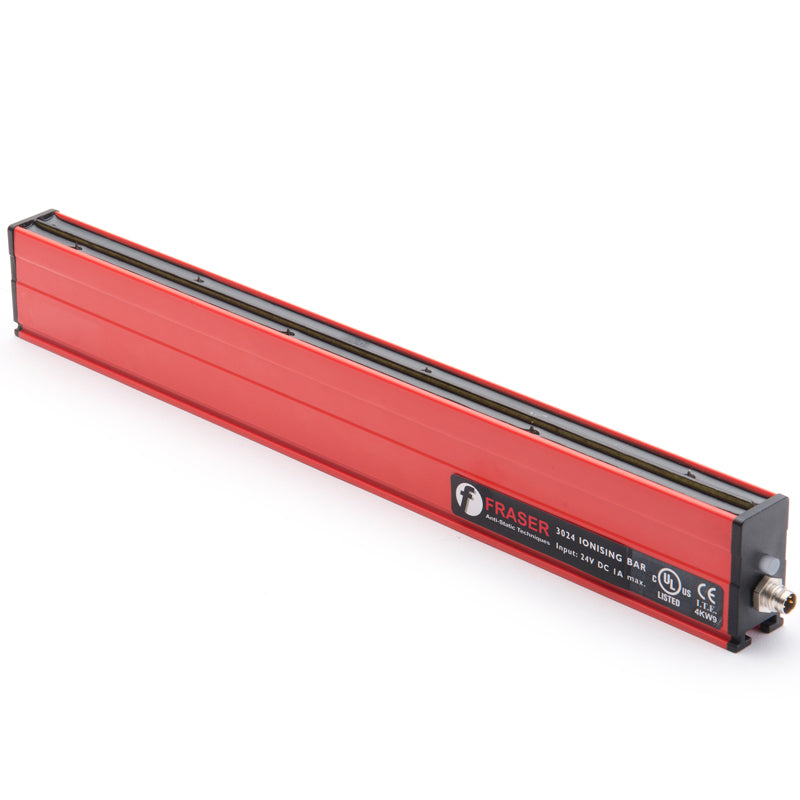

Fraser 3024L Long Range Anti-Static Ionising Bar, 11 Kv, 400mm

The 3024L is an ideal Long Range static eliminator for many machinery manufacturers: compact and powerful performance. For applications that don't require the additional power and intelligence of a NEOS bar, the 3024L delivers static neutralisation to meet the requirements of high performance machinery. Integrated high voltage power supply, requires only a low voltage 24V DC input.see part Number FRAPSU Shockless, resistively coupled emitters made in tungsten for unlimited life. LED status indication: Bar OK: (green), fault (red). Remote monitoring of operational status. 100% coverage. Effective length = Overall length. No dead zone. Standard M8 4 pin connector. Available in two versions: 1. 3024 F high speed version for speeds up to 1,300m/min, for distances from 25mm to 150mm. 2. 3024 L long range version for distances from 100mm to 500mm EXTERNAL POWER CORD TO BE ORDERED EXTRA #Specifications Remote Monitor: Uses 24 V supply to send signal to the PLC. Electrical Supply: 24 V DC (21 - 28 V). 0.5 A current required standalone,see part Number FRAPSU M8 connector. The M8 x 4 core cable must be ordered separately - see pg 2 of TDS High Voltage Supply: Up to 11kV supply integrated inside Bar. Range: 100 to 500 mm Construction: FR-ABS industrial grade extrusion and epoxy resin. Protection Classification: IP66. Fully sealed. Environment: 0 to 55°C 70 % RH non-condensing Length: 500mm https://youtu.be/sGK9A-TchYk #Includes 1 x 30241L-0400 Ionising Bar Power Supply (incl. power cord) sold separately p/n FRA3024PSU
