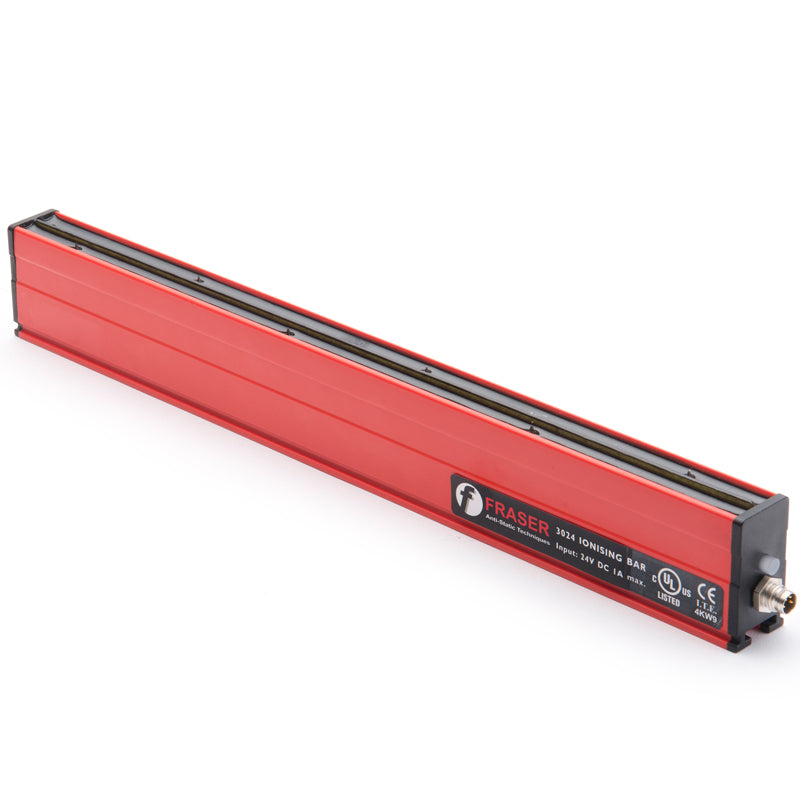

Fraser 3024L Long Range Anti-Static Ionising Bar, 11 Kv, 800mm

Fraser 3024L Long Range Anti-Static Ionising Bar, 11 Kv, 800mm

SKU FRA3024L-800
by Fraser
Sold out
$0.00 - $0.00
$0.00
$0.00
$0.00 - $0.00
$0.00
The 3024L is an ideal Long Range static eliminator for many machinery manufacturers: compact, and powerful performance. For applications that don't require the additional power and intelligence of a NEOS bar, the 3024L delivers static neutralisation to meet the requirements of high performance machinery. Integrated high voltage power supply, requires only a low voltage 24V DC input.see part Number FRAPSU Shockless, resistively coupled emitters made in tungsten for unlimited life. LED status indication: Bar OK: (green), fault (red). Remote monitoring of operational status. 100% coverage. Effective length = Overall length. No dead zone. Standard M8 4 pin connector. Available in two versions: 1. 3024 F high speed version for speeds up to 1,300m/min, for distances from 25mm to 150mm. 2. 3024 L long range version for distances from 100mm to 500mm EXTERNAL POWER CORD TO BE ORDERED EXTRA Length: 800mm https://youtu.be/sGK9A-TchYk #Includes 1 x 30241L-0800 Ionising Bar Power Supply (incl. power cord) sold separately p/n FRAPSU
Features & Benefits

Shockless, resistively coupled emitters made in tungsten for unlimited life.LED status indication: Bar OK: (green), fault (red).Remote monitoring of operational status.100% coverage. Effective length = Overall length. No dead zone.Standard M8 4 pin connector.Available in two versions: 1. 3024 F high speed version for speeds up to 1,300m/min, for distances from 25mm to 150mm. 2. 3024 L long range version for distances from 100mm to 500mm

Specifications

Remote Monitor: Uses 24 V supply to send signal to the PLC.Electrical Supply: 24 V DC (21 - 28 V). 0.5 A current required standalone,see part Number FRAPSU M8 connector. The M8 x 4 core cable must be ordered separately - see pg 2 of TDSHigh Voltage Supply: Up to 11kV supply integrated inside Bar.Range: 100 to 500 mmConstruction: FR-ABS industrial grade extrusion and epoxy resin.Protection Classification: IP66. Fully sealed.Environment: 0 to 55Ā°C 70 % RH non-condensingLength: 800mmhttps://youtu.be/sGK9A-TchYk#Includes1 x 30241L-0800 Ionising BarPower Supply (incl. power cord) sold separately p/n FRAPSU

Technical Data Sheet (TDS)
