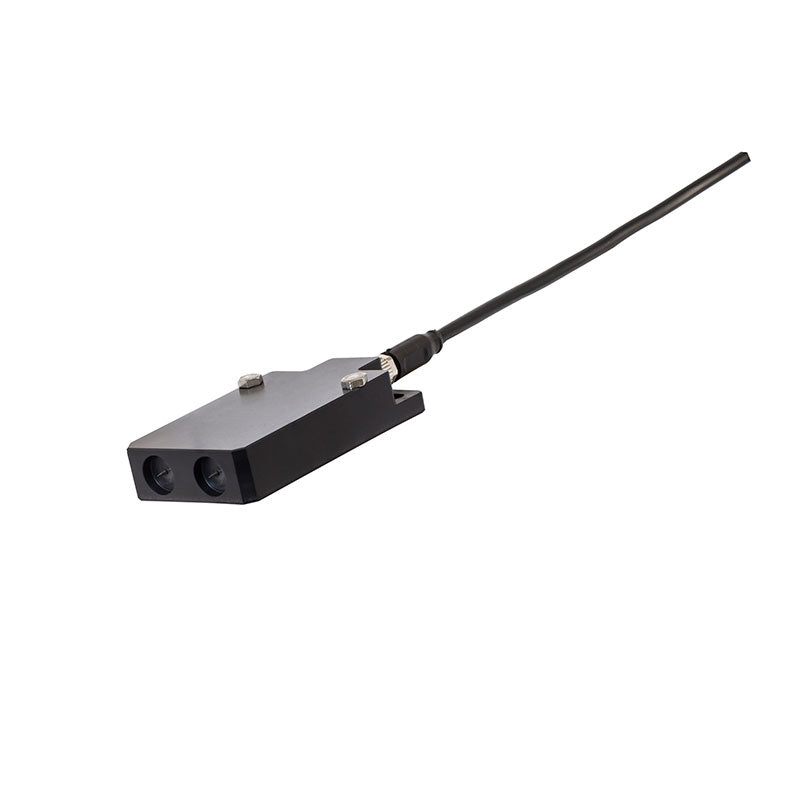

Fraser 3024UC Anti-Static Ionising Bar, Ultra Compact, Short range

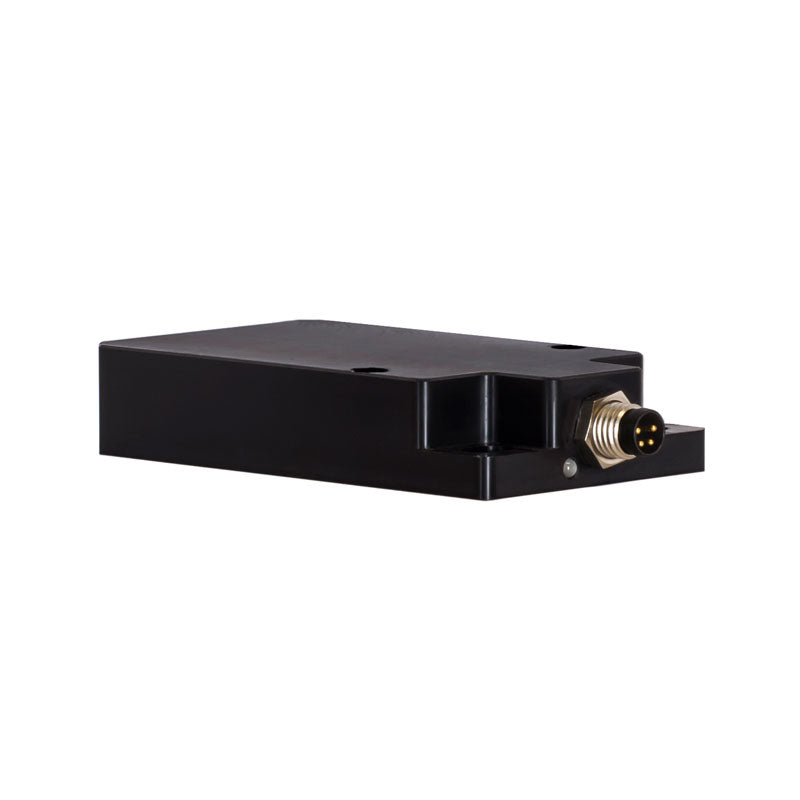

fra3024uc - back.jpg
fra3024uc - combined with nozzle.jpg
fra3024uc - back.jpg
fra3024uc - combined with nozzle.jpg

Fraser 3024UC Anti-Static Ionising Bar, Ultra Compact, Short range

SKU FRA3024UC
by Fraser
Sold out
$0.00 - $0.00
$0.00
$0.00
$0.00 - $0.00
$0.00
The 3024 Ultra-Compact 24V DC close-range static eliminator is designed for use in high-performance machinery where space is at a minimum. Ion balance makes it suitable for most industrial applications where static control is imperative. It has built-in high voltage electronics to deliver powerful static elimination at close range to a substrate or other material. It is capable of delivering up to 7.5kV from a low voltage 24 V DC input.see part Number FRAPSU Pulsed DC high voltage provides excellent charge decay performance even at longer distances. Integrated mounting holes make it easy to install and retrofit to machines, and it can be monitored remotely to maximise performance. The 3024 Ultra-Compact can also be combined with nozzles and gun handles to form ionised air cleaning devices. Perfect for small spaces at just 80mm x 47mm x 16mm (excluding connector). Ideal operating distance of 20mm to 150mm. Shockless, resistively coupled tungsten emitters for unlimited life. LED status indication: Bar OK (green), fault (red), red flash (standby), green/red flash (attention required). Remote monitoring of operational status; outputs compatible with IEC 61131-2 Type 3 PLC inputs. Standard M8 4-pin connector. Protected against under-voltage, overload and reverse polarity. External AC-DC PSU available where 24 V DC not available.see part Number FRAPSU #Includes 1 x 3024UC Ionising Bar Power Supply (incl. power cord) sold separately p/n FRAPSU
Features & Benefits

Integrated mounting holes make it easy to install and retrofit to machines, and it can be monitored remotely to maximise performance.The 3024 Ultra-Compact can also be combined with nozzles and gun handles to form ionised air cleaning devices.Perfect for small spaces at just 80mm x 47mm x 16mm (excluding connector).Ideal operating distance of 20mm to 150mm.Shockless, resistively coupled tungsten emitters for unlimited life.LED status indication: Bar OK (green), fault (red), red flash (standby), green/red flash (attention required).Remote monitoring of operational status; outputs compatible with IEC 61131-2 Type 3 PLC inputs.Standard M8 4-pin connector.Protected against under-voltage, overload and reverse polarity. External AC-DC PSU available where 24 V DC not available.see part Number FRAPSU

Specifications

Electrical Supply: 24 V DC (21 - 28 V). Maximum current 0.25 A. M8 connector. The M8 x 4 core cable must be ordered separately - see pg2 of TDSRemote Monitor: Uses 24 V supply to send signal to the PLC or other destination. Outputs compatible with IEC 61131-2 ‘Type 3’ PLC inputs. Signal protected against short circuit or mis-wiring.High Voltage Supply: +/-7 kV supply integrated inside Ioniser.Operating Distance: 20 - 150 mm.Construction: PVC body, epoxy resin encapsulant, tungsten emitter.Protection Classification: IP67Environment: 0 to 55° C 70 % RH non-condensingOptions: An external AC-DC PSU can be ordered if 24 V DC is not available. 100 - 250V AC, Power Supply. Code: E3024-PSU.Weight: 100 gm#Includes1 x 3024UC Ionising BarPower Supply (incl. power cord) sold separately p/n FRAPSU

Technical Data Sheet (TDS)
