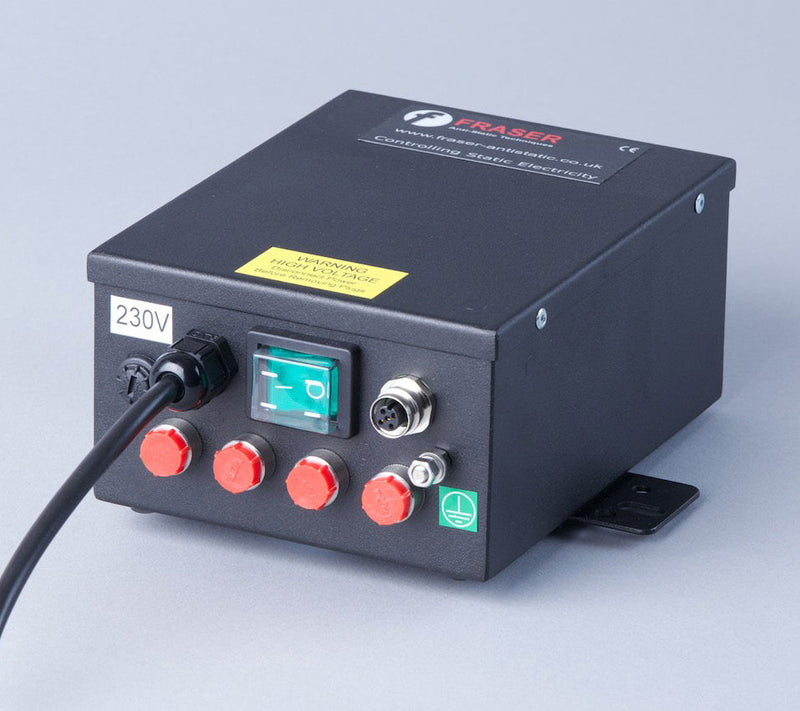

Fraser 90003 Power Unit HP50-F 230 Volt, 4 bars

Fraser 90003 Power Unit HP50-F 230 Volt, 4 bars

SKU FRAHP50F
by Fraser
Sold out
$0.00 - $0.00
$0.00
$0.00
$0.00 - $0.00
$0.00
Fraser 90003 Power Unit HP50-F 230 Volt Quad output for FOUR bars. Code HP50-4-6R1025F1 A High Load HP Power Unit that supplies the energy to run the latest high performance static eliminators from Fraser. They offer many advantages for the international manufacturer. The HP50-F produces high voltage, low current in a controlled and safe way to provide the power for Fraser AC High Performance static eliminators working on 5.5kV - 6kV. It has bayonet connectors for fast and easy connection of the static eliminators. The HP50-F can power up to four static eliminators. > Remote monitor options to link with customer’s PLC, showing whether static eliminators are working and also if they require cleaning. > Construction IP54 rated. > All the controls and cables are on one face.
Features & Benefits

Quad output for powering up to four static eliminator bars.Provides high voltage, low current safely and reliably.Bayonet connectors allow fast and easy connection of static eliminators.Remote monitoring option for PLC integration to check operation and cleaning status.IP54 rated construction for protection against dust and water ingress.All controls and cables conveniently located on one face for ease of use.

Specifications

Manufacturer: FraserPart Number: FRAHP50F / 90003Voltage: 230 V ACOutput: High voltage, low current suitable for 5.5 – 6 kV static eliminatorsNumber of Bars Supported: 4Construction: IP54 ratedConnectivity: Bayonet connectors, optional remote monitoring via PLC
