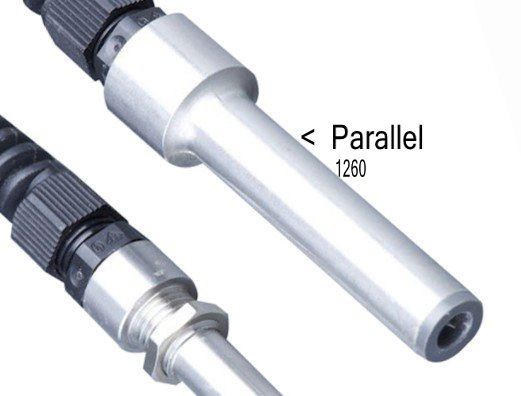

Fraser Antistatic Single Point Parrell side
Fraser Antistatic Single Point Parrell side
Fraser Antistatic Single Point Parrell side
Fraser Antistatic Single Point Parrell side

Fraser Antistatic Single Point Parrell side

SKU FRA1260
by Fraser
$0.00 - $0.00
$0.00
$354.09
$354.09 - $354.09
$354.09
The very compact, high performance 1260 Single Point Ionisers are suitable for neutralising the static charge on small objects and in confined spaces. The resistively coupled design produces a concentrated cone of ionised air up to 150 mm in diameter. This is ideal for neutralising static electricity on tape, trim, yarns, optical fibres and other small parts. Robust stainless steel construction with shockproof operation With Thread and nut All live parts encapsulated in epoxy resin for protection, reliability and a long life Optimal performance at a distance of 20 < 50 mm Wide choice of Fraser 5.5 and 6 kV Power Units with optional remote monitoring Certified cleanroom compatible to ISO Class 4 Easy to install and maintain, the 1260 Single Point Ionisers is frequently used to ionise the air from air jets and nozzles.

Stock available: 1

Features & Benefits

Compact, high-performance design for small objects and confined spacesConcentrated ionised air cone up to 150 mm diameter for targeted static neutralisationRobust stainless steel construction with shockproof operationEncapsulated live parts in epoxy resin for protection and reliabilityOptimal performance at 20–50 mm distance from targetCompatible with Fraser 5.5 kV and 6 kV power units, with optional remote monitoringCertified cleanroom compatible to ISO Class 4Easy to install and maintain, ideal for use with air jets and nozzles

Specifications

Manufacturer: FraserPart Number: FRA1260Product: Single Point IoniserConstruction: Stainless steel body, PTFE insulation, nylon cable glandCable: Hi-Flex 30 kV screened cable, 2 m standard length, 70 mm bend radius (custom lengths available)Safety: 100 MO series resistance for shockless operationPower Unit Compatibility: Fraser 5.5 kV and 6 kV power unitsEnvironmental: Max 60 °C, 70 % RH non-condensingCertification: CE, ISO Class 4 cleanroom compatible

Technical Data Sheet (TDS)
