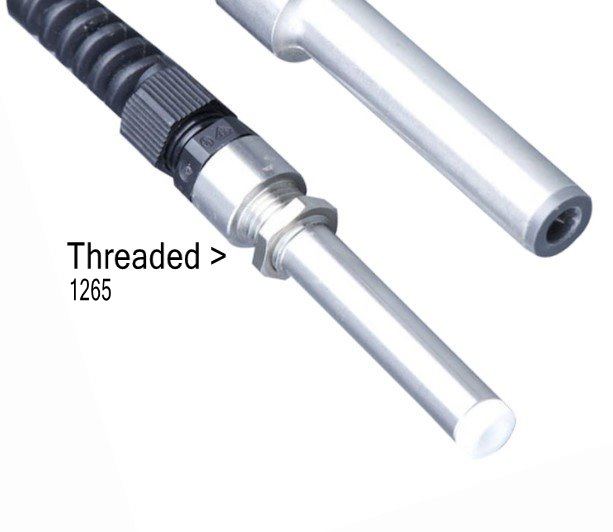

Fraser Antistatic Single Point with Thread

Fraser Antistatic Single Point with Thread

SKU FRA1265
by Fraser
Sold out
$0.00 - $0.00
$0.00
$0.00
$0.00 - $0.00
$0.00
The very compact, high performance 1265 Single Point Ionisers are suitable for neutralising the static charge on small objects and in confined spaces. The resistively coupled design produces a concentrated cone of ionised air up to 150 mm in diameter. This is ideal for neutralising static electricity on tape, trim, yarns, optical fibres and other small parts. Robust stainless steel construction with shockproof operation With Thread and nut All live parts encapsulated in epoxy resin for protection, reliability and a long life Optimal performance at a distance of 20 < 50 mm Wide choice of Fraser 5.5 and 6 kV Power Units with optional remote monitoring Certified cleanroom compatible to ISO Class 4 Easy to install and maintain, the 1265 Single Point Ioniser is frequently used to ionise the air from air jets and nozzles.
Features & Benefits

Compact design for small objects and confined spacesConcentrated ionised air cone up to 150 mm diameter for targeted static neutralisationRobust stainless steel construction with shockproof operationEpoxy-encapsulated live parts for durability and safetyOptimal performance at 20–50 mm from the targetCompatible with Fraser 5.5 kV and 6 kV power units, with optional remote monitoringCleanroom compatible to ISO Class 4Easy installation and maintenance, suitable for use with air jets and nozzles

Specifications

Manufacturer: FraserPart Number: FRA1265Product: Single Point IoniserConstruction: Stainless steel body, PTFE insulation, nylon cable glandCable: Hi-Flex 30 kV screened cable, 2 m standard length, 70 mm bend radius (custom lengths available)Safety: 100 MO series resistance for shockless operationPower Unit Compatibility: Fraser 5.5 kV and 6 kVEnvironmental: Max 60 °C, 70 % RH non-condensingCertification: CE, ISO Class 4 cleanroom compatible

Technical Data Sheet (TDS)
