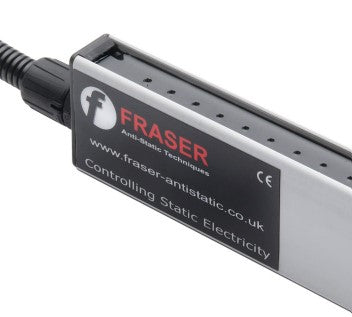

Fraser Generator Bar 100mm

7080 Generator Bars provide a safe, controllable, reliable and cost-effective method of applying static charge for temporary adhesion. 100mm 7080 Generator Bars provide a safe, controllable, reliable and cost-effective method of applying static charge for temporary adhesion in industry. 7080 Generator Bar has a cable and connector compatible with older Fraser 7330 and 7324 Generators. Suitable for most industrial applications. When used with a Fraser IONFIX 30 kV Generator, it gives the operator full control and operational feedback. Compact size and rigid construction All parts completely encapsulated for reliability and safety Emitters at a 10 mm pitch, resistively coupled for spark-free operation. Cable protected with flexible nylon conduit. Cable exit 180° or 90°. 7080 Generator Bars is suitable for a wide range of electrostatic adhesion applications, including interleaving, pinning, labelling, in-mould labelling (IML), wrapping, bagmaking and many others. Options Tungsten emitters at 5 mm pitch (7080-T5) 90° cable outlet #SPECIFICATIONS Construction Extruded PVC with ABS endcaps, epoxy resin. Stay-sharp alloy emitters at 10 mm pitch. Dimensions 20 x 45 mm (W x H). Available Lengths: minimum 100 mm, then in 100 mm steps to 4000 mm. Active length = overall length -70 mm. A 60 mm option is available for specialist applications. Cable 2 m HV cable as standard. Longer lengths can be specified at time of order. Max cable length 10 m. Cable terminates in HV connector. Protective nylon conduit on cable. Minimum bend diameter 100 mm. Safety 100 MOhm resistance for safe operation. Environmental Clean, dry and oil-free location. Temperature: 0 - 60 °C, 70 % rH non-condensing max. Generator 7080: use with Fraser 7330 and 7324 Generators. State generator model at time of order. Certification CE.
