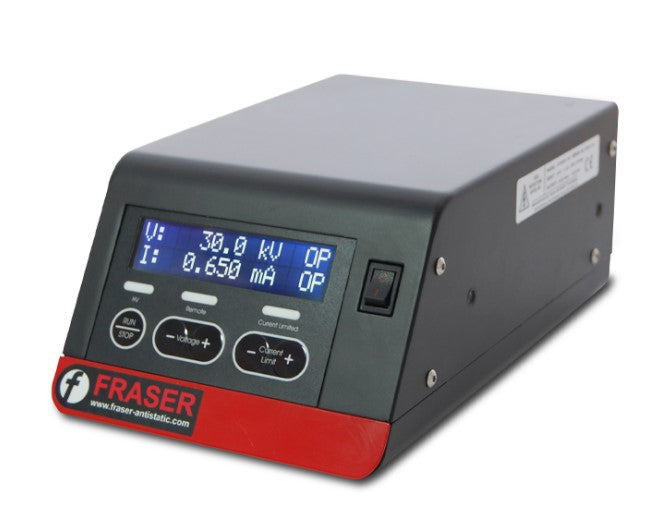

Fraser Generator IONFIX NEG AC

Fraser Generator IONFIX NEG AC

SKU FRAE73020N
by Fraser
Sold out
$0.00 - $0.00
$0.00
$0.00
$0.00 - $0.00
$0.00
The IONFIX Compact Static Generator supplies the high voltage required for industrial electrostatics applications, such as temporary adhesion, in-mould labelling (IML), hole detection, product charging and material separation. Designed for manual use or for complete integration within a process, the IONFIX Compact provides a full range of features and capabilities in a compact and versatile construction. 30 kV, available in positive or negative polarity 20 W of power , giving a full 1 mA at 20 kV and 0.67 mA at 30 kV Fast rise and fall times for high speed operations Four high voltage output connections Easy to operate keypad controls with large, clear LED displays showing precise running information and fault analysis Industry standard remote interface links with process control/PLC 180deg display rotation and flexible mounting brackets for versatile installation The IONFIX Compact is part of the IONFIX family of 30 kV and 60 kV Static Generators. In addition to generator bars and electrodes, the IONFIX Compact is complemented by a range of IML Accessories.
Features & Benefits

Provides up to 30 kV with positive or negative polarity for flexible applications.Delivers 20 W of power, capable of 1 mA at 20 kV and 0.67 mA at 30 kV.Fast rise and fall times suitable for high-speed operations.Four high-voltage output connections for multiple electrodes.Easy-to-use keypad with large LED displays for monitoring and fault analysis.Industry-standard remote interface for PLC and process control integration.Flexible mounting with 180Ā° display rotation for versatile installation.Compact and robust construction suitable for manual or automated applications.

Specifications

Construction1.5 mm powder coated steel. Flexible mounting brackets.Dimensions158.30 x 105.25 x 277 mm (W x H x D). 208.30 mm W including mounting brackets.Electrical Output30 kV max, 20 W. 1 mA @ 20 kV and 0.67 mA @ 30 kV. Output voltage adjustable in 0.1 kV steps. Current limit adjustable in 0.01 mA steps. Positive or negative polarity to be specified at time of order.HV Connections4 generator electrodes can be connected.External Control and MonitoringRemote interface for comprehensive control and monitoring with standard25-way, D-type connection.Electrical Input24 V DC. 2 A max. 48 W max. Combicon or 4-pin M12 connector. 90 - 250 V AC, 50/60 Hz, 1 A. IEC 60320 C14 inlet. Mating plug IEC 60320 C13.SafetyProtected against overload, short-circuit, sparking and mis-wiring.EnvironmentalDry, oil-free location. 0 - 50 ?C maximum temperature, 70 % rH non-condensing max. IP20.CertificationCE, CB and UL.OptionsIML variant - limited to 20 kV output.
