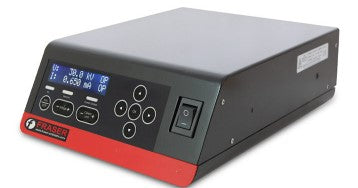

Fraser Generator IONFIX PRO 60 pos AC

Fraser Generator IONFIX PRO 60 pos AC

SKU FRAE76015P-AC
by Fraser
Sold out
$0.00 - $0.00
$0.00
$0.00
$0.00 - $0.00
$0.00
IONFIX Pro high performance 30 kV and 60 kV static generators deliver 150 W of power. Designed for the most demanding electrostatic charging applications, the IONFIX Pro provides comprehensive controllability, simplicity of use and high reliability. Positive polarities Fast rise and fall times for high speed operations Four high voltage outputs for connecting generator electrodes Easy to operate keypad with large clear LED displays showing precise running information and fault analysis. Multiple levels of safety and protection Industry standard remote interface links with process control/PLC Simple menu for configuring remote interface and accessing advanced settings 180? display rotation and choice of mounting bracket positions for versatile mounting Used for temporary bonding in many industrial processes, the IONFIX Pro is ideal for applications such as non-stop winders, laminate work surfaces, chill rollers, interleaving and product separation. Options Fieldbus connection
Features & Benefits

Delivers up to 60 kV and 150 W for high-power electrostatic applications.Fast rise and fall times for high-speed operations.Four high-voltage outputs for connecting multiple generator electrodes.Easy-to-use keypad with large LED displays for precise monitoring and fault analysis.Multiple levels of safety and protection.Industry-standard remote interface for PLC and process control integration.Simple menu for configuring remote interface and accessing advanced settings.180Ā° display rotation and versatile mounting bracket positions for flexible installation.Fieldbus connection available as an option.

Specifications

Construction1.5 mm powder coated steel.Dimensions264 x 105.25 x 337 mm (W x H x D). 314.30 mm W including mounting brackets.Electrical Output760150: 60 kV max, 150 W, 2.5 mA.Output voltage adjustable in 0.1 kV steps. Current limit adjustable in 0.01 mA steps. Positive or negative polarity to be specified at time of order.HV Connections4 generator electrodes can be connected.External Control and MonitoringRemote interface for comprehensive control and monitoring with standard25-way, D-type connection.Electrical Input90 - 250 V AC, 50/60 Hz. 3 A max. IEC 60320 C14 inlet.2.8 m cable.SafetyProtected against overload, short-circuit, sparking and mis-wiring.EnvironmentalDry, oil-free location. 0 - 50 Ā°C maximum temperature, 70 % rH non-condensing max. IP20.CertificationCE.
