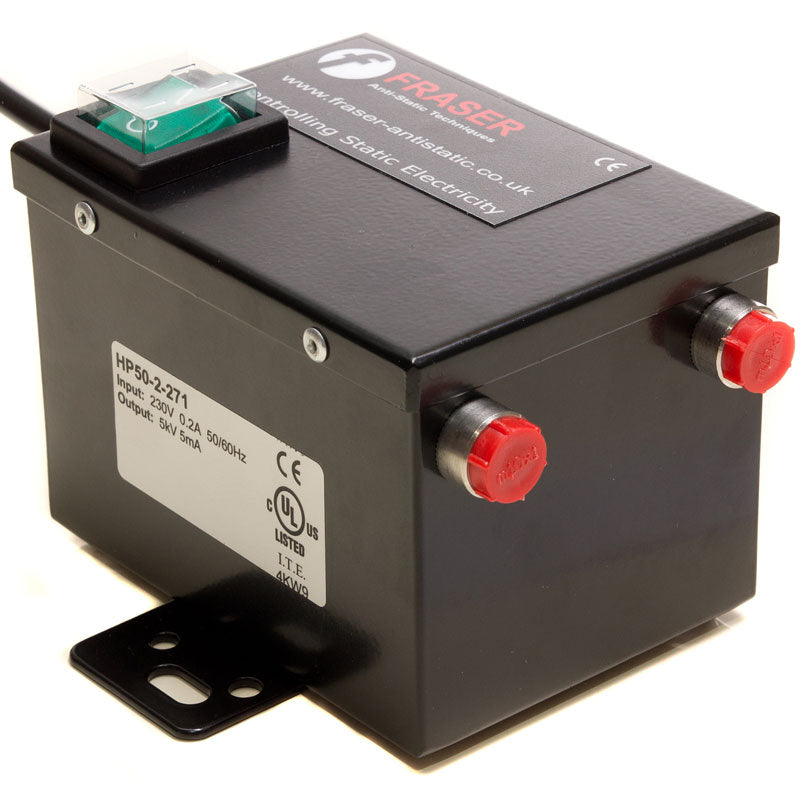

Fraser HP50 Power Unit, 2 Bar For all AC Bars
Fraser HP50 Power Unit, 2 Bar For all AC Bars
Fraser HP50 Power Unit, 2 Bar For all AC Bars

Fraser HP50 Power Unit, 2 Bar For all AC Bars

SKU FRAHP50PSU-2
by Fraser
Sold out
$0.00 - $0.00
$0.00
$973.97
$973.97 - $973.97
$973.97
Fraser 90005 Power Unit HP50-2 230 Volt For Two 4125 duster Guns each with 5m of HT cable or 1250-S Bar 12m of combined Bar and HT cable. Dual output for TWO bars. The HP50-2 produces high voltage, low current in a controlled and safe way to provide the power for Fraser AC High Performance static eliminators working on 5.5 kV. > It has stainless steel bayonet connectors for fast and easy connection of static eliminators. > Construction IP54 rated. > On-off switch is standard. Also available for OEM use without switch (HP50-2-OEM.) > Compact size makes it suitable for large and small machines.
Features & Benefits

> It has stainless steel bayonet connectors for fast and easy connection of static eliminators.> Construction IP54 rated.> On-off switch is standard. Also available for OEM use without switch (HP50-2-OEM.)> Compact size makes it suitable for large and small machines.

Specifications

Construction: Powder coated steel case. Transformer with fully encapsulated windings.Input: 115 V or 230 V, 50/60 Hz. Please specify input voltage.Output: 5.5 kV, secondary current limited to 5 mA. Maximum Load: 12 m of combined Bar and HT Cable.Environment: 50º maximum temperature. 70% rH non-condensing max. Location should be dry and oil free.Safety: The design is current limited to 5 mA. If more than 5 mA current is drawn the transformer is designed to shut down. Power will restart when the excessive load or fault is removed.Options: Available without illuminated switch: Product Code HP50-2-OEM.

Technical Data Sheet (TDS)
