Fraser Ionised Air Blower:, 750mm

SKU FRA2010-750
by Fraser
Sold out
Original price $0.00 - Original price $0.00
Original price $0.00
$0.00
$0.00 - $0.00
Current price $0.00

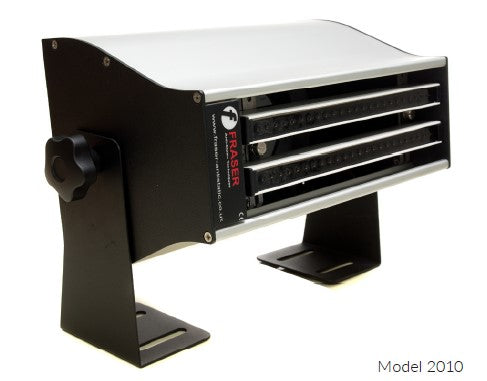

The 2010 Ionised Air Blower is a long distance static eliminator with a robust aluminium construction and powerful ionisation performance. The 2010 Ionised Air Blower is a powerful, long distance static eliminator. Positioned 200 to 1500 mm from the material, the 2010 produces a high volume of ionised air to neutralise static charges in a wide variety of industrial applications. It is particularly suited to applications where there is considerable ambient air movement which could reduce the effectiveness on non-air-assisted long range static eliminator bars. Fast static neutralisation is provided by two 1250-S Static Eliminators with long-life emitters integrated into an aluminium frame Robust modular design allows construction in lengths up to 2000 mm in 250 mm steps Fan speed controlled variable airflow up to 5600 lit/min per 250 mm Ionised air leaving the blower expands at about 15° for effective wide area coverage longer than the blower’s actual length One 120 V or 230 V, 50/60 Hz connection powers all functions The 2010 Ionised Air Blower is simple to install and maintain: Swivel L brackets allow for versatile mounting Anti-static bars can be removed from the front for ease of servicing
Features & Benefits

Powerful long-distance static elimination for industrial applicationsTwo 1250-S static eliminators with long-life emitters for rapid neutralisationAluminium frame provides durability and robust operationModular design allows extension up to 2000 mm in 250 mm incrementsVariable fan speed up to 5600 lit/min per 250 mm for adjustable airflowIonised air expands at ~15° for wide-area coverage beyond blower lengthEasy installation with swivel L-brackets and removable anti-static bars for maintenanceSingle 120 V or 230 V power connection for all functions

Specifications

Manufacturer: FraserPart Number: FRA2010-750Product: Ionised Air BlowerConstruction: Aluminium frameDimensions: 244 mm H × 198 mm DBlower Length: 750 mm (total length = 750 mm + 73 mm)Cable: IEC connector with 2 m mains cableSafety: High resistance for shockless operation; emitter current <50 µAPower Unit: IntegratedFans: One axial fan per 250 mm; rated 50,000 hours; airflow 5600 lit/min per fan/250 mmElectrical Input: 230 V, 50/60 HzOptions: Filters availableAvailable lengths: 305 mm minimum, then 500 mm and in 250 mm steps up to 2000 mm

Technical Data Sheet (TDS)
