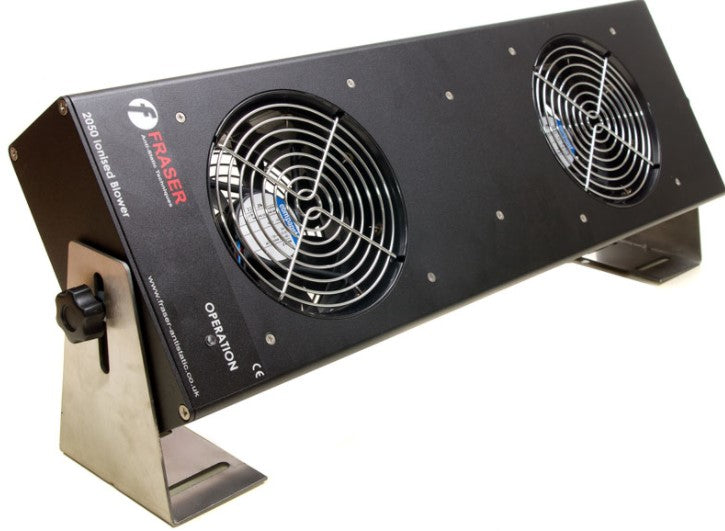

Fraser over head Ioniser, Twin fan

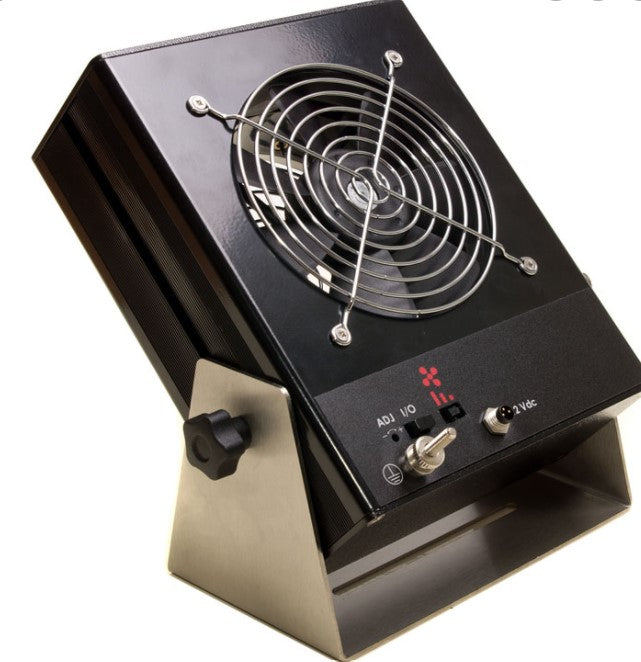

2050 single fan back.jpg

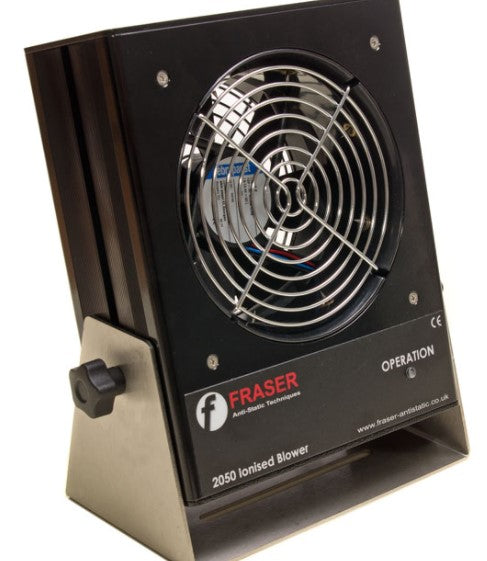

2050 single fan ioniser.jpg
2052 twin fan ioniser.jpg

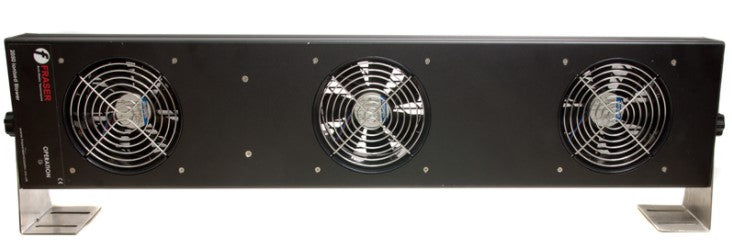

2053 three fan ioniser.jpg
2050 single fan back.jpg
2050 single fan ioniser.jpg
2052 twin fan ioniser.jpg
2053 three fan ioniser.jpg

Fraser over head Ioniser, Twin fan

SKU FRA2052
by Fraser
Sold out
$0.00 - $0.00
$0.00
$0.00
$0.00 - $0.00
$0.00
The 2050 Series is a range of high specification ionised air blowers with integrated power units and controls. Suitable for most industrial and technology applications, the 2050 Series meets the demanding requirements of the electronics, medical, pharmaceutical and RFID industries. High performance ionisation with balance of +/- 30 V Adjustable airflow to 170 m3/hr (100 cfm), ball-bearing fan rated at 120,000 hours at 40 °C LEDs showing function OK or out of specification Compact, portable and easy to use, with an adjustable stand for mounting Position 200 – 600 mm from the material to be neutralised Supplied with 90 V – 250 V, 50/60 Hz power supply, the 2050 Series is available in four versions: 2052, 505 mm body (two fans)
Features & Benefits

High-performance ionisation with ion balance of ±30V for reliable static controlTwin fans with adjustable airflow up to 170m³/hr (100cfm) per fanLED indicators for function status and out-of-specification alertsCompact, portable, and easy to mount with adjustable stainless steel standFast neutralisation: reduces 5000V to 500V in under 1second at 300mmLow maintenance with ball-bearing fans rated at 120,000hoursOptional filter with replaceable element for clean operation

Specifications

Manufacturer: FraserPart Number: FRA2052Product: Overhead Ioniser, Twin FanConstruction: Aluminium body with adjustable stainless steel standDimensions: 505mm L × 168–213mm H × 113mm DNeutralisation: 5000V ? 500V < 1s at 300mmIon Balance: ±30V (factory set, adjustable with 2mm screwdriver)Airflow: Adjustable up to 170m³/hr (100cfm) per fanNoise Level: 45dB (low speed), 56dB (high speed)Electrical Input: 12V DC; supplied with 90–250V, 50/60Hz mains adapterSafety: Visual alarm for HV faults; must be earthed (lead supplied)Environmental: 0–60°C, 70% RH non-condensingOptions: Filter with replaceable element

Technical Data Sheet (TDS)
