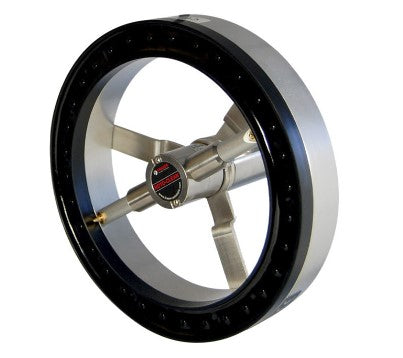

Fraser Roto-Clean 112mm Diameter 3600RPM
Fraser Roto-Clean 112mm Diameter 3600RPM
Fraser Roto-Clean 112mm Diameter 3600RPM

Fraser Roto-Clean 112mm Diameter 3600RPM

SKU FRA4900-112
by Fraser
Sold out
$0.00 - $0.00
$0.00
$2,459.89
$2,459.89 - $2,459.89
$2,459.89
The 4900 Roto-Clean combines an advanced circular ioniser with high speed, rotating air jets to create a uniquely effective tool for contamination and dust removal from industrial parts. Twin air-powered jets rotate at up to 60 times per second, delivering a 360° flow of ionised air onto the product in a pulsed air hammer effect at up to 240 times per second. This removes contamination and neutralises the static electricity which attracted it. The angle of the high thrust air jets changes as the product passes to achieve the most thorough cleaning of simple and complicated shapes Powerful, 100 % coverage static neutralisation Efficient use of compressed air for low running cost and fast payback Easy to install on conveyors, robot arms and cleaning stations Available in two sizes and configurable for any size and shape of product or process The 4900 Roto-Clean is used wherever a clean and static-free product is needed from injection mouldings, machined parts, assemblies, trays, panels and medical parts to PCBs, etc. Used with Fraser HP Power Units, there are two versions of the 4900 Roto-Clean: HP50 or 9055-2 Roto-Clean Clamp set is FRA49002 Also requires a clean Air source at a max of 3.5 Bar pressure
Features & Benefits

Construction Static Eliminator: PVC body, epoxy resin encapsulant, tungsten emitters. Nozzle: aluminium.Dimensions 80 x 51 x 33 mm (L x W x D) excluding connectors. Operational Length: 47 mm.Weight Static Eliminator 100 g, Nozzle 60 g (excluding connectors).Output Voltage +/- 7 kV supply integrated inside Ioniser.Remote Monitor / Local Status Indication Signals available: ‘OK’, ‘Clean Me’, ‘Fault’ and ‘Standby’. Uses 24 V supply to send signal from the ioniser to the PLC or other destination. Outputs compatible with IEC 61131-2 Type 3 PLC inputs. Signal protected against short circuit or miswiring. Bi-colour LED on ioniser body for local status indication.Electrical Input 24 V DC (21 , 28 V). Maximum current 0.25 A. M8 connector.Air Supply Air Fitting: 6 mm OD push fit. Air Consumption: 300 l/min @ 2 Bar. Blowing Force: 2.4 N @ 2 Bar.Environmental 0 ,55 °C, 70 % rH non-condensing max. IP67.Certification CE and UL Certified (3024 Ultra-Compact incorporated within 4800 DC).

Specifications

Manufacturer: FraserPart Number: FRA4900-112Product Type: Roto-Clean Static EliminatorDiameter: 112 mmRotation Speed: Up to 3600 RPMAir Jet Speed: Up to 60 rotations per secondPulse Frequency: Up to 240 pulses per secondAir Supply Requirement: Clean, dry compressed airMaximum Air Pressure: 3.5 barPower Unit Compatibility: Fraser HP50 or 9055-2Mounting: Conveyor systems, robotic arms, and fixed cleaning stationsOptional Accessories: Roto-Clean Clamp Set (FRA49002)
