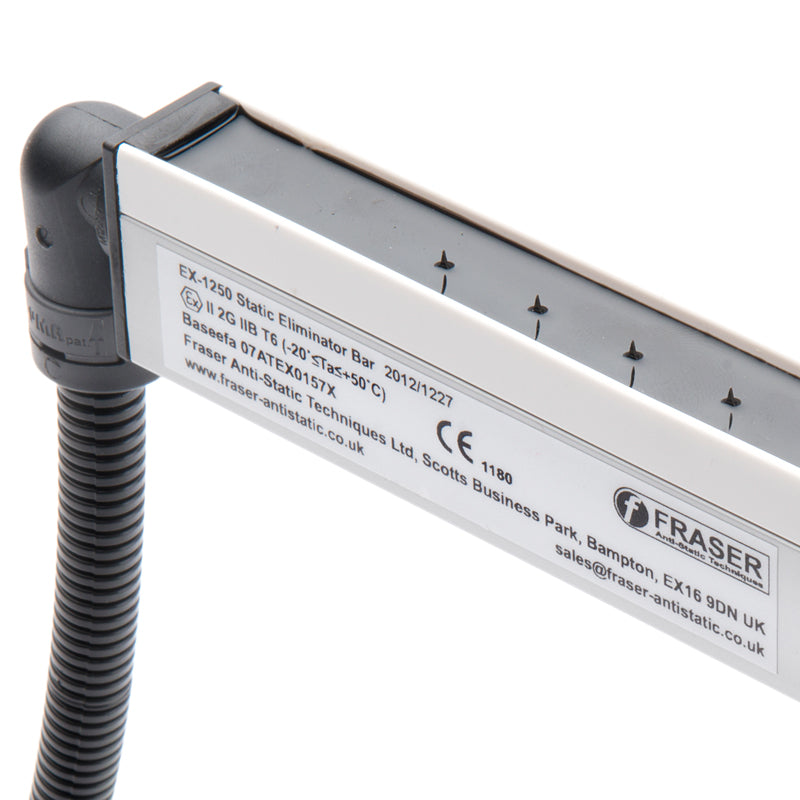

Fraser Static Eliminator Bar 600mm

Resistively coupled emitters for maximum safety with optimal ionisation efficiencyFully encapsulated live parts for protection, reliability and a long lifeRobust construction and shockless operationOperating distance between 20 < 150 mm, with best performance within 50 mmUse with Fraser EXHP or HP-ION Power UnitsMaximum load 30 m of combined bar and cableThe EX1250’s wide certification covers most industrial coating, laminating and gravure printing processes.

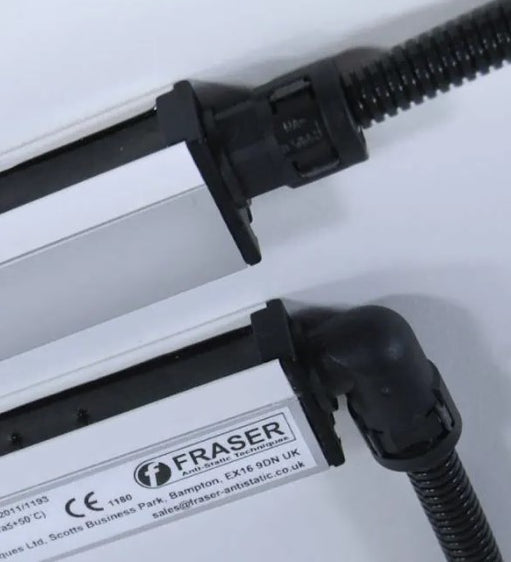

Length: 600mm Construction ;Anodised aluminium, epoxy resin, ABS and hardened emitters.Dimensions ;20 x 32 mm (W x H).Available Lengths: any length from 120 mm to 6000 mm.Active length is 70 mm less than overall length.Cable ;3 m of cable in protective nylon conduit is standard, longer lengths can be specified at time of order. Please check that 3 m is sufficient to reach the power unit outside of the EX Zone.SafetyHigh resistance in emitters for shockless operation.Power Unit ;EXHP or HP-ION (Model 3111), must be positioned outside of the hazardous area.Environmental ;40 °C maximum temperature. 70 % rH non-condensing max. Location should be dry and oil-free.Certification ;CE, ATEX EX certified for use in hazardous areas.#Options 90° cable exitMetallic protective cable conduitAir Knife mounted ,see 5000/5100 and 5500EXHP Power Unit, remote monitoring of operational condition/alarm , an LED can be fitted to show that high voltage is functioningHP-ION (Model 3111) Power Unit , remote function monitoring to show status of high voltage and whether bars require cleaning
