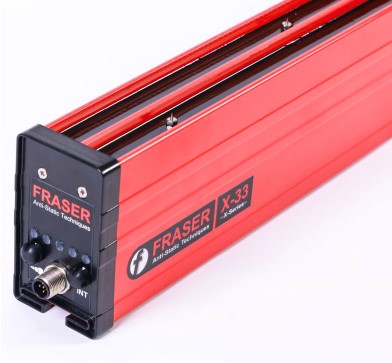

Fraser X-33 Intelligent Static Eliminator 33 Kv, 1500mm

Fraser X-33 Intelligent Static Eliminator 33 Kv, 1500mm

SKU FRAX33-1500
by Fraser
Sold out
$0.00 - $0.00
$0.00
$0.00
$0.00 - $0.00
$0.00
The X-33 is a 33 kV static eliminator with built-in field polarity sensing and adaptive ionisation for long range and wide area applications. A high power static eliminator for long range applications, the X-33 provides industry-leading pulsed DC technology with built-in field polarity sensing and adaptive ionisation. It replaces NEOS 30 as the world’s most powerful long range static eliminator. It is the largest member of the X-SERIES family. The power of the X-33 makes it ideally suited to manufacturers and end users of large winding machinery, such as slitter/ rewinders, cast film extruders, blown film extruders, and laminators. X-SERIES adaptive intelligence sets new standards. By optimising the output to remove the static charge, it delivers up to double the static neutralisation power of competitive products. Shockless, resistively coupled and replaceable tungsten emitters for long life Simple on-bar adjustment, giving the operator the ability to optimise performance for actual conditions at installation 100% coverage: actual length = effective length LED indication of status of bar and whether it needs cleaning Duplicate remote signals for PLC or to power external lamps, relays Remote on/off switching and standby mode The X-33 Intelligent Static Eliminator is used on winders, unwinders and many other long range and wide area applications.
Features & Benefits

Shockless, resistively coupled and replaceable tungsten emitters for long lifeSimple on-bar adjustment, giving the operator the ability to optimise performance for actual conditions at installation100% coverage: actual length = effective lengthLED indication of status of bar and whether it needs cleaningDuplicate remote signals for PLC or to power external lamps, relaysRemote on/off switching and standby modeThe X-33 Intelligent Static Eliminator is used on winders, unwinders and many other long range and wide area applications.

Specifications

Construction Reinforced FR-ABS industrial grade extrusion and endcap. Epoxy resin encapsulated. Tungsten emitters.Dimensions 52.8 x 93 mm (W x H).Available Lengths: 1500mm Weight 1.02 kg + 2.5 kg/m.Output Voltage ±33 kV supply integrated into the bar.Remote Monitor / Local Status Indication Signals available: ‘OK’ and ‘Status’. Compatible with IEC 61131-2 Type 1, 2 and 3 PLC inputs. Backwards compatible with NEOS products. 5 bi-colour LEDs indicate output frequency, intelligence operational including charge polarity, cleaning required, standby enabled.Electrical Input 24 V DC (21 - 28 V), maximum current required 2.5 A. M12 5-pin connector.Environmental 0 to 55°C, 70% rH non-condensing max. IP64.Certification CE and CB
