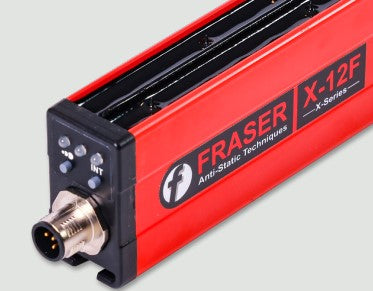

Fraser X12F Anti-Static Ionising Bar, 12 Kv, 1020mm

Fraser X12F Anti-Static Ionising Bar, 12 Kv, 1020mm

SKU FRAX12F-1020
by Fraser
Sold out
$0.00 - $0.00
$0.00
$0.00
$0.00 - $0.00
$0.00
The X-12L is a powerful and intelligent 24 V DC static eliminator, providing 12 kV of ionising power for longer distances up to 600 mm. The X-SERIES range of static eliminators is a major advance in industrial static control technology. X-SERIES intelligence monitors the static charge and reacts to it by emitting the quantity and polarity of ions for fastest neutralisation. With X-SERIES adaptive intelligence setting new levels of static neutralisation performance, Compact size with fully encapsulated electronics Shockless, tungsten emitters guarantee a long life 100 % coverage: overall length = effective length X-SERIES intelligence has three automatic and three manual settings, giving the operator the ability to optimise performance for actual conditions Local LED indication of status of bar and whether it needs cleaning Duplicate signals for PLC or to power external lamps, relays External on/off switching and standby mode X-12 anti-static bars replace the NEOS 12 bars as our best-selling 24 V DC intelligent static eliminators and are available in two versions. X-12F for short range applications within 100 mm of the charged material.
Features & Benefits

Compact design with fully encapsulated electronics.Shockless, tungsten emitters ensure a long operational life.Full coverage: overall length equals effective ionising length.X-SERIES adaptive intelligence with three automatic and three manual settings for optimised performance.Local bi-colour LED indicators for operational status and cleaning alerts.Two remote signals (‘HV OK’ and ‘Attention’) compatible with IEC 61131-2 Type 1, 2, and 3 PLC inputs.External on/off switching and standby mode.Replacement for NEOS 12 bars, providing superior static elimination performance.

Specifications

Construction Reinforced FR-ABS Industrial grade extrusion and endcap, fully encapsulated with epoxy resin. Tungsten emitters.Dimensions 25 mm x 45.0 mm (W x H).Available Lengths: 1020mmWeight 1.5 kg/m.Output Voltage 12 kV supply integrated into bar.Remote Monitor / Local Status Indication 2 signals available: ‘HV OK’ and ‘Attention’. Both outputs are IEC 61131-2 Type 1, Type 2 and Type 3 compatible. The outputs can also be used for direct driving of external lamps or relays. Bi-colour LEDs on endcap for local status indication, including ‘Clean Me’.Electrical Input 24 V DC (21-28 V), maximum current required 1.5 A. M12 5-pin connector.Environmental 0 - 55 °C, 70 % rH non-condensing max. IP67.Certification CE and CB
