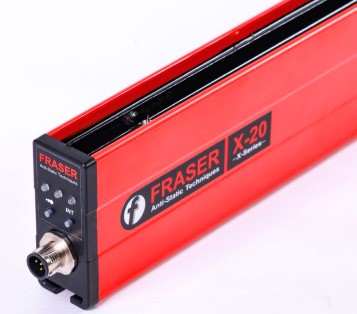

Fraser X20 Anti-Static Ionising Bar, 12 Kv, 1050mm

Fraser X20 Anti-Static Ionising Bar, 12 Kv, 1050mm

SKU FRAX20-1050
by Fraser
Sold out
$0.00 - $0.00
$0.00
$0.00
$0.00 - $0.00
$0.00
The X-20 is a high performance, pulsed DC 20 kV anti-static bar with adaptive intelligence for operating distances up to 800 mm. The X-SERIES range of static eliminators is a major advance in industrial static control technology. X-SERIES intelligence monitors the static charge and reacts to it by emitting the quantity and polarity of ions for fastest neutralisation. With X-SERIES adaptive intelligence setting new levels of static neutralisation performance, the X-20 anti-static bar provides an integrated 20 kV of ionising power for distances between 150 to 800 mm. Compact size with fully encapsulated electronics Replaceable tungsten emitters guarantee a long life with shockless operation 100 % coverage: effective length > overall length X-SERIES intelligence has three automatic and three manual settings, giving the operator the ability to optimise performance for actual conditions LED indication of status of bar and whether it needs cleaning Duplicate remote signals for PLC or to power external lamps, relays Remote on/off switching and standby mode X-20 builds upon and replaces Fraser’s best-selling NEOS 20 for use on winders, unwinders and many other long distance and wide area applications.
Features & Benefits

Compact design with fully encapsulated electronics.Replaceable tungsten emitters ensure long life with shockless operation.Full coverage: effective length equals overall length.X-SERIES intelligence with three automatic and three manual settings for optimal performance.Local bi-colour LED indicators show bar status and cleaning requirements.Two remote signals (‘HV OK’ and ‘Attention’) compatible with IEC 61131-2 Type 1, 2, and 3 PLC inputs.Remote on/off switching and standby mode.Ideal for winders, unwinders, and other long-distance or wide-area static control applications.

Specifications

Construction Reinforced FR-ABS industrial grade extrusion and endcap, fully encapsulated with epoxy resin. Tungsten emitters.Dimensions 28 mm x 66.5 mm (W x H).Available Lengths: 1050 mm, Weight 2.6 kg/m.Output Voltage 20 kV supply integrated into bar.Remote Monitor/Local Status Indication 2 signals available: ‘HV OK’ and ‘Attention’. Both outputs are IEC 61131-2 Type 1, Type 2 and Type 3 compatible. The outputs can also be used for direct driving of external lamps or relays. Bi-colour LEDs on endcap for local status indication, including ‘Clean Me’.Electrical Input 24 V DC (21-28 V), maximum current required 2.0 A. M12 5-pin connector.Environmental 0 to 55 °C, 70 % rH non-condensing max. IP67.Certification CE and CB
