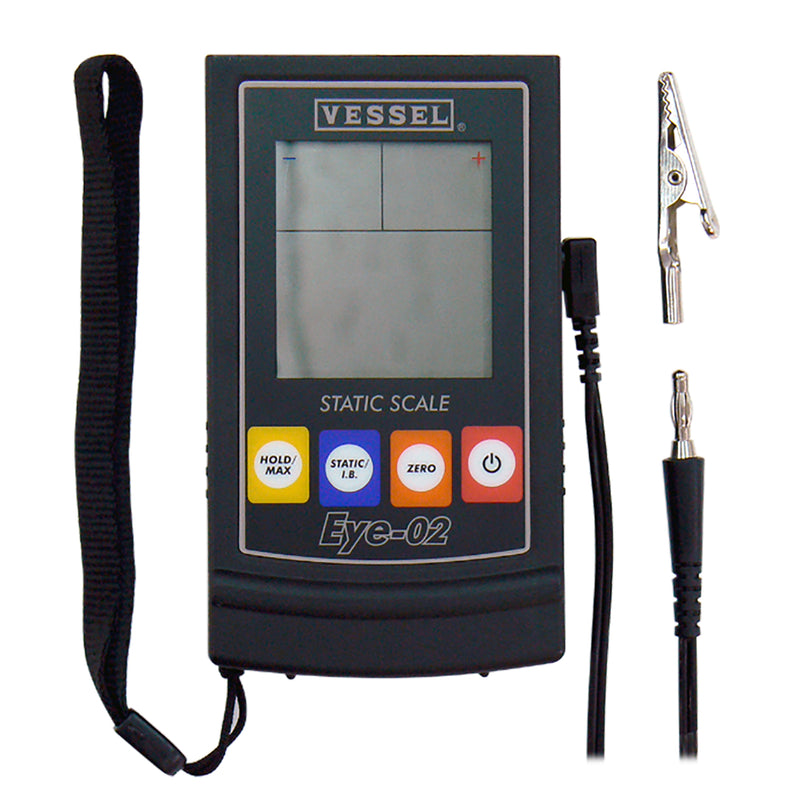

Vessel Electrostatic Field Meter

Vessel Electrostatic Field Meter

SKU VESEYE-02
by Vessel
Sold out
$0.00 - $0.00
$0.00
$0.00
$0.00 - $0.00
$0.00
Product Overview: The VESSEL Electrostatic Field Meter No.Eye-02 is a portable measuring device that is capable of detecting and measuring electrostatic charges and ion balance in industrial and electronic environments. It offers users the ability to measure levels of static electricity and ensure ideal Electrostatic Protected Area (EPA) conditions. Applications: *Manufacturing of Electronics: Prevents electronic components from being damaged by static while under production processes. *Laboratories: Measures and regulates levels of static electricity in laboratory environments to ensure equipment integrity. *Clean Rooms: Checks ion balance of air ionizers to establish optimal conditions for sensitive operations. *Quality Control: Helps determine and sustain EPA standards in some industrial settings.
Features & Benefits

*Dual Measurement Ranges: Includes two measurement ranges for static charge voltage: *Low Range: ±0 to ±1.50 kV *High Range: ±1.0 to ±22.0 kV*Ion Balance Measurement: Ion balance measurement from 0 to ±200V for assessing the ionizer's effectiveness.*Fixed Measuring Distance: Measured at a fixed distance of 25 mm (±0.5 mm) from the object with charge for precise measurement.*Maximum Value Display: Includes a facility to display the maximum value of static charges for advanced analysis.*Visual Guidance: Fitted with an LED cross mark to help users ensure proper measurement distance.*Mounting Flexibility: Fitted with a female screw thread for camera screws, permitting attachment to tripods or jigs for accurate measurements.*Ion Balance Plate: Supplied with a plate optimized for measuring ion balance, for added measurement versatility.*Backlit LCD Display: The LCD display is equipped with a backlight, allowing for good visibility even during low-light operations.*Portable Design: Weighs about 200 grams and has a soft carrying case for convenience in portability.*Calibration Support: ISO 9000 traceability standards are supported; calibration tables and certificates are provided upon request.

Specifications

Manufacturer: VESSEL CO., INC.*Model: Eye-02*Code: 621603*Dimensions: 123 mm (L) x 70 mm (W) x 25 mm (H)*Weight: About 200 grams*Measurement Ranges: *Static Charge Voltage: ±0 to ±1.50 kV (LO range), ±1.0 to ±22.0 kV (HI range) *Ion Balance: 0 to ±200V*Measuring Distance: 25 mm (±0.5 mm) from the charged object*Power Source: 9V DC battery (1 piece, 006 type)*Included Accessories: *Ion Balance Plate *Ground Cord with alligator clip *Carrying Case

More Information

Applications:*Manufacturing of Electronics: Prevents electronic components from being damaged by static while under production processes.*Laboratories: Measures and regulates levels of static electricity in laboratory environments to ensure equipment integrity.*Clean Rooms: Checks ion balance of air ionizers to establish optimal conditions for sensitive operations.*Quality Control: Helps determine and sustain EPA standards in some industrial settings.
