Aoyue H474Tip 1.2 (S) New Type

SKU AOY474Tip1.2New
by Aoyue
Original price $0.00 - Original price $0.00
Original price $0.00
$44.10
$44.10 - $44.10
Current price $44.10

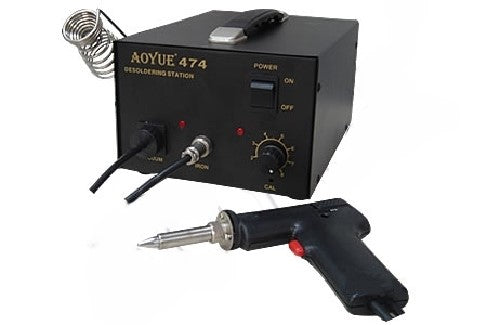

Aoyue Tip New Type With Tail 1.2 (Small Size) 302082 Entry Level Economy Desolder tool l Compact unit with air cylinder type strong suction vacuum pump. l Suited for multi-layered PCB reworking. l The heating element and tip are designed closely to guarantee enough temperature during desoldering. Package content: 474 Station, B1002 Desoldering Gun, Desoldering tips (S, M, L), 3017J Filter pads, 6 pcs. H022 Silicone Grease, 201412 Desoldering gun holder, 201252 Filter pipe, 204242 Nozzle cleaning pin, Power cord. Note: Newer tips has the tip and tube as one piece Older units just the tip

Stock available: 1

Specifications

Power Input :220VPower Consumption:70WTemperature Range:150 - 380 degrees CelsiusHeating Element:PTC Heating ElementOutput Voltage:24VTip to Ground Resistance:Below 2 ohmsTip to Ground Potential:Below 2mVSuction Flow:15L/min (max)Vacuum Generator:Double CylinderVacuum Pressure:600mm HgStation Dimensions:188(w) x 127(h) x 244(d) mmWeight:5.3Kg
