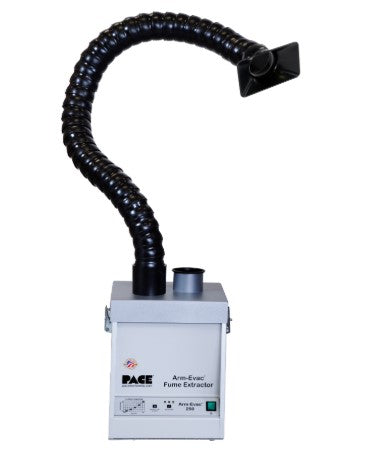

Arm Evac 250 System w/ Flex Arm & Cowl Endpiece Nozzle 75mm x 1.219m Long, 240v

Arm Evac 250 System w/ Flex Arm & Cowl Endpiece Nozzle 75mm x 1.219m Long, 240v

SKU 8889-0350-P1
by Pace
Sold out
$0.00 - $0.00
$0.00
$0.00
$0.00 - $0.00
$0.00
ARM-EVAC 250 w/ 1219m (4ft) ESD-Safe Flex Arm The Arm-Evac 250 is ideal for heavy-duty operations that need high capacity and continuous particle filter monitoring. Incorporating microprocessor technology, an easy-to-read graphical LED filter condition monitor changes from green to yellow to red as the filter becomes clogged. Additionally, flow sensors increase power to the motor as filters become blocked to assure peak performance. The filter monitoring system self calibrates using a membrane keypad on the front panel and an audible alarm alerts the operator when a filter change is required. A three-position motor speed button is also on the front panel. And now the included 4’ Flex Arm (8886-0760-P1), you have everything you need to use the Arm-Evac 250 right out of the box. The Flex Arm has a diameter of 75mm (3”) and can either be mounted directly to the Arm-Evac 250, or with the optional Bench Mounting Bracket. The arm also comes with a standard round endpiece.
Features & Benefits

Microprocessor controlled Three-color LED filter condition gauge Laser-trimmed electronic air flow sensor Self-calibrates to specific arm configuration Audible alarm alerts operator of filter change Three-speed air flow adjustment Intelligent air flow compensation motor pump, increases speed as filter becomes loaded Includes pre-filter, general purpose combo filter and power cord Easy to read LED Filter Condition Monitor Self-calibrating Intelligent air flow compensation Two 3 Inch Inlets Low Noise Level (58 dBA) Can be fitted with a Mobile Cart/Silencer Numerous Filtration Options (Cleanroom Filter, Extended Life Filter, Economy Filter, etc.) Multiple Configuration Options to Suit Your Work Space

Specifications

Unit: Arm-Evac 250Power Requirements: 230VAC, 50Hz 1.38 AmpsSize: 393mm H x 282mm W x 365mm D (15.4° H x 11.1° x 14.3° D)Weight: 14 Kg (31 lbs)Sound Level: 58 dB AInlets: Two 75mm (3°)Flow rate: General Purpose Filter: Single Inlet: 288 m3/h (170 cfm); Dual Inlet: 170 m3/h (100 cfm) per inletCleanroom Filter Single Inlet: 255 m3/h (150 cfm); Dual Inlet: 135 m3/h (80 cfm) per inletNumber of Collection Accessories: Four 45mm (1.75°) or 50mm (2°) or Two 75mm (3°)Maximum Duct Run: 5m (16°) per inletSystem Options: Silencer/Mobile Cart, Remote Control BoxStandard Primary Filter: General Purpose FilterFiltration Options: General Combo Filter, HEPA Combo Filter, Filter, Adhesive Combo Filter, Extended Life Filter, Economy Filter#Content1 x Arm-Evac® 250 System w/ Flex Arm (75mm x 1.2m) and Cowl Endpiece Nozzle1 x Pre filter and HEPA combo filter 88830922-P11 x Wireless Remote1 x Power cord
